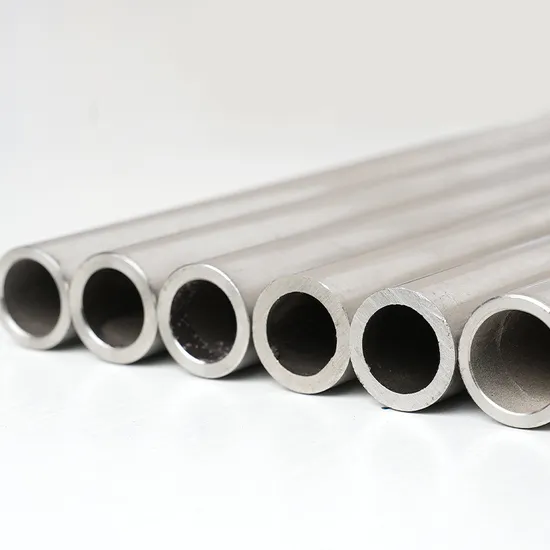

New Design Tube Bends Exhaust Tubes Seamless Threaded Titanium Pipe Made in China
| US$20.00-50.00 | 1 kg (MOQ) |
Basic Info.
Model NO.
Titanium pipe
Technique
Forged
Grade
Ta1 Ta2 Ta3 Tc4 Ta10 Ta9 Ta8 Tc1 Tc11
Shape
Round
Certificate
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Quality Inspection
Ut, Chemical Composition, Physical Properties/SGS
Heat Treatment
Quenched,Tempered,Annealed
Surface Require
Machined/Sand Blasting
Processing Service
Welding, Cutting
Transport Package
Seaworthy Packing/Wooden Box or at Client′s Requir
Specification
Customized
Trademark
OEM & ODM
Origin
China
HS Code
8108901090
Production Capacity
1500tons/Year
Product Description
Product Description Pure Titanium And Titanium Alloy Sheet, Strip, Bar, Tube, ExtrusionWe offers a complete range of titanium and titanium alloy mill products in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. We also offer metal processing services including hot-forming (e.g super plastic forming), extrusion,seamless pipe production, water jet and saw cutting, and machining.
| Product Name | Titanium |
| Titanium Bars/ Rods/Ingots | Ф3mm~Ф1020mm,the maximum weight is up to 12t |
| Titanium Slab | (80~400)mm×(~1500)mm×(~2600)mm |
| Titanium Forgings | Weight per piece≤2000kg |
| Titanium Hot-rolled plates | (4~100)mm×(800~2600)mm×(2000~12000)mm |
| Titanium Cold-rolled plates | (0.01~4.0)mm×(800~1560)mm×( ~6000) mm |
| Titanium Strips | (0.01~2.0)mm×(800~1560)mm×L |
| Titanium Tubes / Pipes | Ф(3~114)mm×( 0.2~5)mm × (~15000)mm |
| Standards | GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт |
| Titanium Grade | GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Titanium | Composition Requirements, weight percent | |||||||||
| Grade | C | O | N | H | Fe | Al | V | Pd | Ni | Mo |
| 1 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | - | - | - |
| 2 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 3 | ≤0.08 | ≤0.35 | ≤0.05 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 4 | ≤0.08 | ≤0.40 | ≤0.05 | ≤0.015 | ≤0.50 | - | - | - | - | - |
| 5 | ≤0.08 | ≤0.20 | ≤0.05 | ≤0.015 | ≤0.40 | 5.5~6.75 | 3.5~4.5 | - | - | - |
| 7 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.12~0.25 | - | - |
| 9 | ≤0.08 | ≤0.15 | ≤0.03 | ≤0.015 | ≤0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - |
| 11 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.12~0.25 | - | - |
| 12 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | 0.6~0.9 | 0.2~0.4 |
| 16 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.04~0.08 | - | - |
| 17 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.04~0.08 | - | - |
| 23 | ≤0.08 | ≤0.13 | ≤0.03 | ≤0.0125 | ≤0.25 | 5.5-6.5 | 3.5~4.5 | - | - | - |
| Titanium | Tensile Strength | Yield Strength | Elongation | Bend Test(Radius of Mandrel) | |
| Grade | ksi [MPa] | 0.2% offset, ksi [MPa] | in 2", % | t<1.8 mm | 1.8 mm≤t<4.75 mm |
| 1 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 2 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 3 | ≤65 [450] | 55~80 [380~550] | 18 | 2T | 2.5T |
| 4 | ≤80 [550] | 70~95 [483~655] | 15 | 2.5T | 3T |
| 5 | ≤130 [895] | ≤120 [828] | 10 | 4.5T | 5T |
| 7 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 9 | ≤90 [620] | ≤70 [483] | 15 | 2.5T | 3T |
| 11 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 12 | ≤70 [483] | ≤50 [345] | 18 | 2T | 2.5T |
| 16 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 17 | ≤ 35[240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 23 | ≤120 [828] | ≤110 [759] | 10 | 4.5T | 5T |
Main Products
| Category | Material | Dimension(mm) | Specification |
| Ti & Alloy ingots & bars | CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, etc. | Standard Or Customized | GB/T 2965, ASTM B348 |
| Ti & Alloy castings | GB/T 6614, ASTM B367 | ||
| Ti & Alloy forgings | GB/T 25137, ASTM B381 | ||
| Ti & Alloy plates | GB/T 3621, ASTM B265 | ||
| Ti & Alloy strips & foils | GB/T 3622, ASTM B265 | ||
| Cold rolled Ti & Alloy strip coils | GB/T 26723, ASTM B265 | ||
| Ti & Alloy wires | GB/T 3623, ASTM B863 | ||
| Ti & Alloy seamless tubes | GB/T 3624, ASTM B861 | ||
| Ti & Alloy welded tubes | GB/T 26057, ASTM B862 | ||
| PM Ti & Alloy components | GB/T 6887, ASTM B817 |
