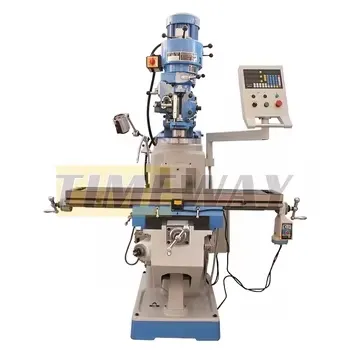

Various Operation Universal Milling Machine Turret Milling Machine M250b

Product Description

Product Description

M250B

Table size	mm	254x1270/254x1370
Longitudinal travel (X)	mm	820/920
Cross travel (Y)	mm	380
Vertical travel (Z)	mm	350
T-slot (No./width)	mm	3/16
Ram travel	mm	470
Distance from spindle to table	mm	0-400
Spindle taper	-	R8
Spindle quill travel	mm	127
Spindle speed	rpm	16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)
Spindle quill automatic feed	mm/r	0.038/0.076/0.152
Main motor power	kw	2.2
Mill head swivel angle	°	±90°
Mill head tilting angle	°	±45°
X/Y/Z-axis guide type	-	double dovetail guideway/rectangular guideway/double dovetail guideway
Dimension of package	mm	1516x1550x2080

Detailed Photos

After Sales Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer). Company Profile
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
