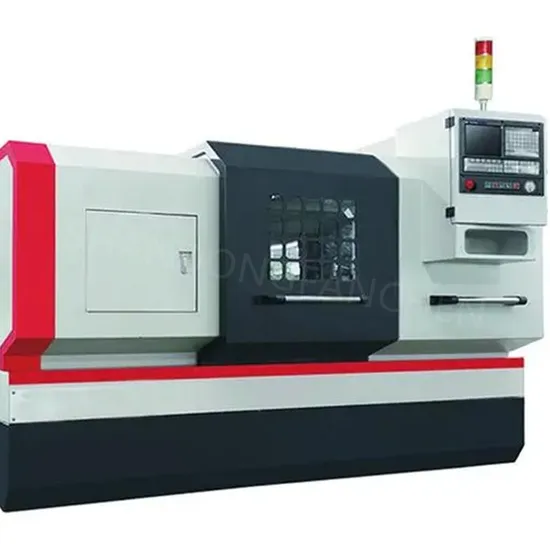

Ck6136 CNC Lathe Horizontal High Precision Configuration Optional
| US$13,000.00-15,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
6136
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
360
Maximum Working Length
1000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ52
Feed Per Turn
0.005-100
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
500-1800
Tailstock Sleeve Stroke
130
Tool Dimension
20*20
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
1200.00cm * 1500.00cm * 1800.00cm
Package Gross Weight
2200.000kg
Product Description
| argument | unit | Model number6136 |
| Maximum turning diameter on the bed | mm | 360 |
| Maximum turning diameter on a skateboard | mm | 190 |
| Maximum working length | mm | 1000 |
| Bed width | mm | 400 |
| X-axis travel | mm | 200 |
| Z-axis travel | 1000 | |
| Spindle speed range | r/min | 500-1800(2)(High and low 2) stepless frequency conversion speed regulation |
| Spindle end size | C6 | |
| Taper of spindle inner hole | Morse 6, metric 52 | |
| Spindle through hole diameter | mm | 52 |
| Number of tools | 4/6 | |
| Shank size | 20*20 | |
| Tool change time | sec | ≤2 |
| X-axis fast feed | mm/min | 4000 Servo 4000 |
| Z-axis fast feed | mm/min | 6000 Servo 6000 |
| Feed per turn | mm/r | 0.005-100 |
| Minimum setting unit | mm | 0.001 |
| Repeated positioning accuracy | mm | 0.01 |
| Surface roughness | Ra1.6 | |
| Taper of tailstock sleeve | MT5 | |
| Tail seat sleeve diameter | mm | 65 |
| Tailstock sleeve stroke | mm | 130 |
| Main motor power | KW | 4 |
| X,ZN.m | N.m | 4,6 |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
