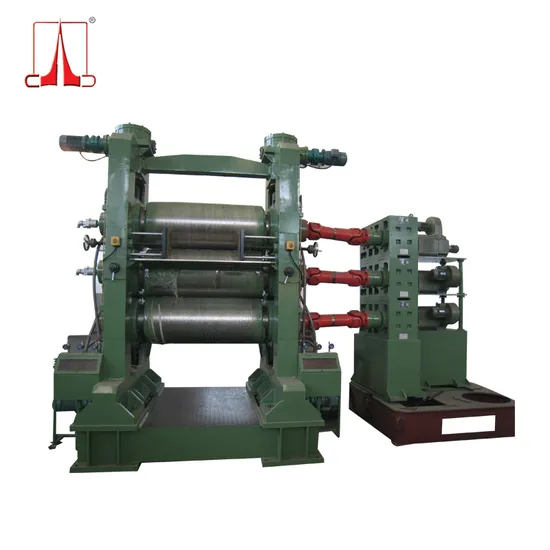

Xy-3 1500 PE Film Making Machine Rubber Mixer Calender Machine for Sale

Product Description

Quick Details
Condition: New
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: XY-3 550*1500
Voltage: 380V
Power(kW): 165
Dimension(L*W*H): 7.4x2.2x2.9 m
Weight: 30 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Textile Fiber Making Machine
Rubber Calender Color: Green / Blue / etc. (customize available)
Silicone Calender Material: Stainless Steel / Carbon Steel / Casting Steel
Roller Material: Chilled Alloyed Cast Iron
Motor for the Calender Machine:Frequency Converter Control
Bearing Style: Anti-friction Roller Bearing
Roller Nip Range: 0~6 mm
Roller Gap: Motorized

Packaging Details: Delivery Detail:

Wood Pallet & Film Wrap (Textile Fiber Making Machine)

60 Working Days Since Down Payment (Textile Fiber Making Machin)

Specifications

Textile Fiber Making Machine
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Product Width: 0.025mm~4m
4. Hollow or Peripheral
Why Choose from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Application
This machine mainly uses in the rubber (tires, belts,textile fiber rubberizing and so on),the plastic (thin film, sheet, thin sheet plate, wallpaper, floor and so on.) formation processing.

Main Parameters

Model	XY-3 630	XY-3 1120	XY-3 1400	XY-3 1500	XY-3 1730
Roller Diameter (mm)	Φ230	Φ360	Φ400	Φ450	Φ610
Working Length (mm)	630	1120	1400	1500	1730
Thickness of Product	1.5~6 mm
Product Width (mm)	100-500	500-920	1200	1400	1450
Roller Linear Speed	0.5~5 m/min
Roller Style	I, L, Γ
Power Supply	AC 380V 50HZ 3P (customize available)
Motor Power (Kw)	7.5	40/13.3	55/18.5	75/25	185
Dimension (m)	3.2x0.9x1.8	5.0x1.7x2.1	6.5x1.5x2.5	7.4x2.2x2.9	7.2x3.9x3.7
Weight (t)	4.2	12.8	26	30	35

Packaging & Shipping
Wood Pallet & Film Wrap ( Calender for Film )

Our Services
Calender for Film
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
