Heavy Duty Big Bore Manual Lathe Machine Cw61125dx8000

Product Description

Product Description

FEATURE:
1. These robust lathes are engineered with precision to masterfully handle turning of end-faces, cylindrical surfaces, and internal holes across a diverse range of components.
Additionally, they possess the adept capability to craft metric, inch, module, and pitch threads with effortless precision.
2. The top slides offer the flexibility of individual powered operation, allowing for the precise cutting of short taper surfaces.
3. For those requiring long taper surfaces, our machines enable seamless automatic turning through the synchronized compound movement.
This is achieved by combining longitudinal feed with top slide feed. Beyond this, these machines excel in drilling, boring, and trepanning tasks.
The comprehensive utility makes them an indispensable asset for versatile operations.
4. The hallmark features include robust power, exceptionally high spindle speed, and unmatched rigidity, ensuring superior performance every time.
5. Capable of expertly turning various ferrous and non-ferrous metal parts, they are the ideal choice for heavy cutting tasks using carbon alloy tools.
Experience unparalleled precision and durability with each operation.
Product Parameters

SPECIFICATION		Model
		CW611OOD CW621OOD	CW61125D CW62125D	CW61140D CW62140D	CW61160D CW62160D
Max.swing diameter over bed		1000	1250	1400	1600
Max.swing diameter over crossslide		630	880	1030	1030
Max.swing over gap		1450	1700	1850	2050
Width of bed		755mm
Max.length of workpiece		1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
Spindle nose		A15
Sindle bore diameter		130mm
Taper of spindle bore		Metric No.140#
Range of spindle speed		3.15-315r/min 21kinds
Longitudinal feeds range		0.1-12mm/r 56 kinds
Transversal feeds range		0.05-6mm/r 56kinds
Rapid speed	Z-axis	3740mm/min
	X-axis	1870mm/min
	upper toolpost	935mm/min
Metrec thread range		0-120mm 44kinds
Inch thread range		3/8-28 teeth/iuch. 31kinds
Modular thread range		0.5-60mm 45kinds
Pitch thread range		1-56teech/iuch 25kinds
Tailstock sleeve taper		Morse NO.6
Tailstock sleeve diameter		140mm
Tailstock sleeve travel		300mm
Main motor power		22kW
Rapid motor power		1.5kW
Coolant pump power		0.125kW

Stand Accessories
1. Four-jaw chuck Φ 1000mm - Ensures reliable and secure holding for large workpieces.
2. Steady rest Φ70--480mm - Provides stable support for precision operations.
3. Follow rest Φ50--220mm - Maintains alignment and supports during complex tasks.
4. Dead center MT No.6 - Essential for centered alignment and precision turning.
5. Revolving center MT No.6 - Facilitates smooth rotations and enhanced stability.
6. Light - Illuminates workspace for improved visibility and accuracy.
7. Coolant pump - Ensures optimal tool temperature and prolongs tool lifespan.
8. Tools - Comprehensive set for diverse machining tasks.
Special Accessories, Extra cost
1. Four-jaw chuck Φ 1250mm - For larger workpiece handling, enhancing versatility.
2. Steady restΦ 400--700mm/Φ700--1000mm (for CW61140D, CW61160D only) - Tailored for specific machine models, ensuring adaptability.
3. Thread chasing dial device - Precision threading made simple and efficient.
4. Taper turning attachment - Achieve complex tapers with ease and accuracy.
5. Digital readout - Provides clear, real-time data for enhanced control and precision.

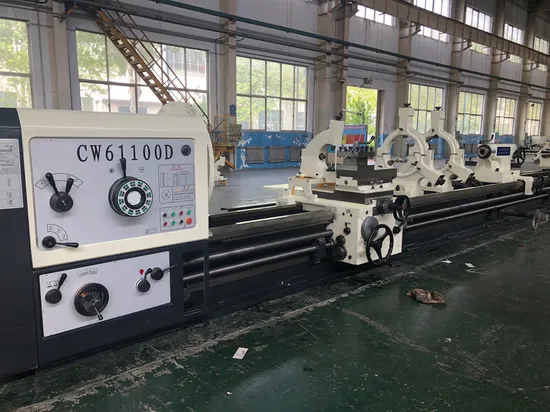

Detailed Photos
