Factory Direct Sales 1bqx Plowing Machinery Farm Equipment Mounted Light Duty Disc Harrow

Product Description

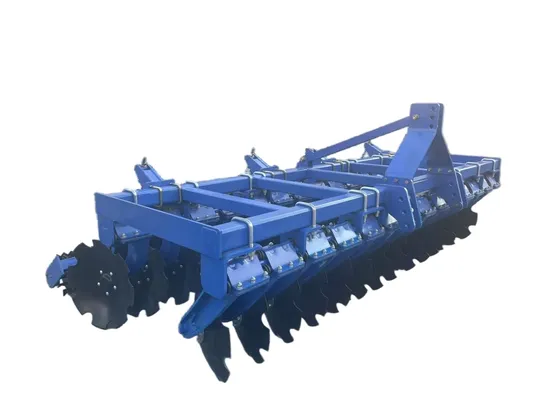

Product Description: Name: Agricultural Equipment 3 Point Mounted Disc Harrow for Tractor Disc Harrow 1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and afterplough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It ismade of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydrauliclifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of theharrow is dramatically improved. Main Feature 1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade. 3)Automatic spray equipment, disk surface smooth color uniform beautiful.

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.2	1BQX-3.4
Working Width (mm)	1100	1300	1500	1700	1900	2200	3400
Working depth (mm)	100-140
No. of disc (pcs)	12	14	16	18	20	24	42
Diameter Of disc	460mm/ 18inch
Weight (kg)	200	220	240	260	290	350	1100
Linkage	Three-pointed mounted						Trailed
Matched power (hp)	12-15	15-18	25-30	30-35	35-40	55-60	80-1

Normal packing or According to your requirement.Safe, complete and fast delivery of goods to customers
