Basic Info.
Transport Package
Individually
Production Capacity
50000/Year
Product Description

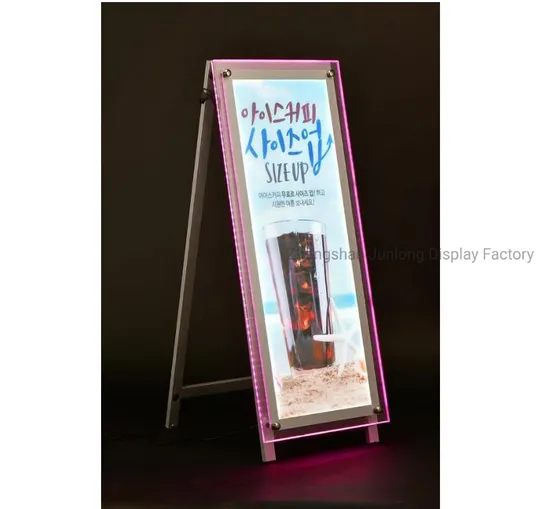

Multi-Colors LED Photo Frame RGB Flashing Lighting Panel A1 Casino Light Box
RGB color change light box, light panel.
RGB light source in DC12V.
Transparent frame, with color change shinning ring around the light box
Middle poster will be with white backlit.
Lighting panel to spread edge light to be backlit, soft brightness.
Remote to control the color
Can install stainless steel feet to stand.
Flat surface, elegant design.
Standard size is from A1 to A4.
Product description
Junlong Light box advantage
1.Extremely thin: LGP(light guide panel) technology makes the light box very slim, thickness is only 8-30mm.
2.High brightness, very steady: highest level A acrylic panel and self-developed silk print ink makes the light box has super brightness which is 30% brighter than other light box.Uniform and soft light, not easy to get yellowing, makes the graphic looked very natural and real.
3.Power saving: we use imported LED SMD2835 strips as light source, it makes the light box has very low attenuation which is less than 10% in the first 8,000hrs. Long lifespan which reaches 100,000hrs. More than 75% power can be saved compare to traditional light box.
4.Strict producing process: frames connect perfectly, seam joint between frames is less than 0.2mm, screws can not be seen when opening the front cover, it's very beautiful and elegant.
5.Easy to change poster: magnetic design or snap frame design, it's very convenient to change poster.
6.Frame color: frame color can be customized according to customer's request.
7.Power adapter: DC12V certificated power supplier, safe and reliable.
8.Certification: Passed CE certification, some of the products have obtained the patents.
9.Safe packing for export: each product packed individually with K+A paper box (polyethylene bag or bubble bag+4pcs foam protecting angel), several units pack into one master carton with cardboard which surrounds all sides, very reliable for long-distance transport. Wooden crate packing can be customized.
Standard Sizes for reference (Size can be customized )
Model | Size
| Specification(mm)
| Thickness (mm)
| Light source | Power (W)
| Power supplier | Note |
Outer Size | Graphic size | View Size |
JL-SC
| A4 | 290 x 377
| 210 x 297
| 200 x 287
| 13
| LED
| 3.6W
| DC12V
| Crystal frame
|
A3
| 377 x 500
| 297 x 420
| 287 x 410
| 13
| LED
| 7.2W
| DC12V
| Crystal frame
|
A2
| 500 x 674
| 420 x 594
| 410 x 584
| 13
| LED
| 14.4W
| DC12V
| Crystal frame
|
A1
| 684 x931
| 594 x 841
| 584 x 831
| 13
| LED
| 20W
| DC12V
| Crystal frame
|
