Ultra High Pressure Water Sewer Cleaning Jetting Jet Blasting Paint Spray SAE 100 R7 R8 R18 Thermoplastic Hydraulic Hose

Product Description

Ultra High Pressure Water Sewer Cleaning Jetting Jet Blasting Paint Spray SAE 100 R7 R8 R18 Thermoplastic Hydraulic Hose
Qingdao David Technology Co., Ltd. is a professional manufacturer of ultra high pressure thermoplastic hose, hose couplings & fittings, nozzle in China. We have developed and manufactured thermoplastic hose since the year of 2008. And now after many years of development, our factory has been leading of manufacturing thermoplastic hose in China, specialists in the product of ultra high pressure water jetting thermoplastic hose.
We know products' quality is company's life, so we are strict in working at testing. We have our own testing facility to test our hose, all of our hose must be strictly tested before shipping, usually our test pressure is 1.5 times of working pressure.
Our thermoplastic hose of working pressure can reach to 4000bar (58,000psi) , Inside diameter is from 3mm to 25mm.
We wish to cooperate with more customers in the world forever.
Specialists in Thermoplastic Hose that is used for:
Oil & Gas
Paint Spray
Water Jetting
Water Blasting
Sewer Cleaning
Automotive Industry
High Pressure Hydraulic

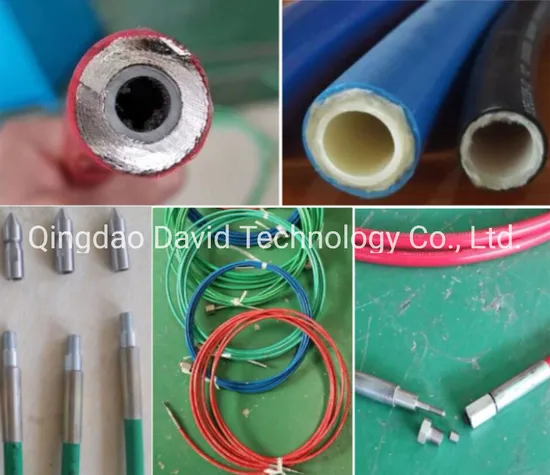

Ultra High Pressure Thermoplastic Hose
Inner Tube (polyamide / Polyoxymethylene ),
Reinforcement (layers of high-tensile steel wire),
Outer Cover (Polyamide / polyurethane)
Color is red or blue or black,other colors upon request
Temperature:-40ºC---- +90ºC
Applications: It is used for many types of liquid, gas, powder, various of oil and chemicals, etc. It is best for water jetting, water blasting and high pressure hydraulic.
We can also supply assembly hose to you. The details of end fittings, please choose it from our catalogue or we manufacture it upon your request.
SIZE	I.D.	O.D.	Working Pressure		Burst Pressure		Min. Bend Radius	layers of wire	Approx Weight
	mm	mm	bar	psi	bar	psi	mm		Kg/Meter
3A	3	6.5	1,000	14,500	2,500	36,250	95	2	0.080
4A	4	8.4	1,100	15,950	2,750	39,875	105	2	0.130
4B	4	10.3	1,500	21,750	3,750	54,375	115	4	0.290
4C	4	12	2,300	33,350	5,750	83,375	130	6	0.390
4D	4	13.5	3,100	44,950	7,750	112,375	145	8	0.690
4E	4	14.9	4,000	58,000	10,000	145,000	160	8	0.810
5A	5	9.7	900	13,050	2,250	32,625	105	2	0.145
5B	5	11.4	1,300	18,850	3,250	47,125	115	4	0.255
5C	5	13.5	2,000	29,000	5,000	72,500	130	4	0.400
5D	5	15.3	2,600	37,700	6,500	94,250	145	6	0.430
5E	5	16.5	3,300	47,850	8,250	119,625	160	8	0.690
6A	6	12.4	1,100	15,950	2,750	39,875	125	4	0.280
6B	6	14.4	1,700	24,650	4,250	61,625	140	4	0.430
6C	6	17	2,300	33,350	5,750	83,375	155	6	0.590
6D	6	18	2,800	40,600	7,000	101,500	170	8	0.700
7A	7	13.4	1,000	14,500	2,500	36,250	125	2	0.320
8A	8	14.7	900	13,050	2,250	32,625	155	4	0.430
8B	8	17	1,300	18,850	3,250	47,125	175	4	0.530
8C	8	18.7	1,800	26,100	4,500	65,250	195	6	0.810
8D	8	21	2,800	40,600	7,000	101,500	215	8	0.920
10A	10	17.7	1,000	14,500	2,500	36,250	180	4	0.420
10B	10	19.9	1,600	23,200	4,000	58,000	200	4	0.950
10C	10	22.2	2,200	31,900	5,500	79,750	220	6	1.220
12A	12	20.3	800	11,600	2,000	29,000	190	4	0.710
12B	12	22.6	1,300	18,850	3,250	47,125	210	4	1.020
12C	12	24.8	1,800	26,100	4,500	65,250	230	6	1.520
14A	14	22.5	700	10,150	1,750	25,375	205	4	0.820
14B	14	24.7	1,100	15,950	2,750	39,875	225	4	1.460
14C	14	26.9	1,500	21,750	3,750	54,375	245	6	1.710
16A	16	25	600	8,700	1,500	21,750	230	4	0.920
16B	16	27.5	1,000	14,500	2,500	36,250	260	4	1.220
16C	16	30	1,500	21,750	3,750	54,375	290	6	2.020
19A	19	26.5	500	7,250	1,250	18,125	220	2	0.800
19B	19	30	800	11,600	2,000	29,000	240	4	1.200
19C	19	31	1,000	14,500	2,500	36,250	250	4	1.400
19D	19	33	1,400	20,300	3,500	50,750	350	6	2.200
25A	25	34	500	7,250	1,250	18,125	290	3	0.900
25B	25	37.5	900	13,050	2,250	32,625	310	4	1.950
25C	25	40.5	1,200	17,400	3,000	43,500	410	6	3.000
Other sizes of hose can be made upon your request

Fibre Reinforcement Thermoplastic Hose SAE 100 R7 & R8
Inner Tube (Thermoplastic Elastomer), Reinforcement (1 or 2 layers of high pressure Synthetic Fiber braid), Outer Cover (Polyurethane), Color is black,other colors upon request, Temperature: from -40ºC up to +90ºC
Applications: It is suit for many types of liquid, gas, powder, various of oil and chemicals, etc. It is also suit for high pressure spray-paint hose & sewer cleaning hose & High Pressure Hydraulic Systems.
We can also supply assembly hose to you. The details of end fittings, please choose it from our catalogue or we manufacture it upon your request.
SIZE	Model No	I.D.	O.D.	Working Pressure		Burst Pressure		Min. Bend Radius
		mm	mm	bar	psi	bar	psi	mm
Xs-4	1	4	8.2	220	3,190	660	9,570	89
	2	4	8.6	340	4,930	1,020	14,790	89
Xs-6	1	6	10.7	220	3,190	660	9,570	102
	2	6	11.5	340	4,930	1,020	14,790	102
Xs-8	1	8	13	170	2,465	510	7,395	114
	2	8	14.4	260	3,770	780	11,310	114
Xs-10	1	10	15.6	160	2,320	480	6,960	127
	2	10	17	260	3,770	780	11,310	127
Xs-12	1	12	18	140	2,030	420	6,090	178
	2	12	19.5	230	3,335	690	10,005	178
Xs-16	1	16	22.4	110	1,595	330	4,785	203
	2	16	23.9	170	2,465	510	7,395	203
Xs-19	1	19	25.7	90	1,305	270	3,915	241
	2	19	27.3	140	2,030	420	6,090	241
Xs-25	1	25	32	60	870	180	2,610	305
	2	25	33.7	110	1,595	330	4,785	305
Other sizes of hose can be made upon your request

Sewer Cleaning Thermoplastic Hose---3000psi
Inner Tube (Polyester), Reinforcement (one or two layers of Synthetic Fiber with one special extra fiber braid), Cover (Polyurethane) Working Temperature:-40ºC up to +60ºC Color is Black, Orange or Blue,other colors upon request Application: Sewer cleaning, water jetting,etc. Length: 200 meters per roll, other length is upon request
Hose I.D.		Hose O.D.	Working Pressure		Burst Pressure		Min. Bend Radius
inch	mm	mm	bar	psi	bar	psi	mm
3/8"	9.6	16.5	210	3,000	525	7,500	75
1/2"	12.8	22.4	210	3,000	525	7,500	100
3/4"	19.2	31.8	210	3,000	525	7,500	125
1"	25.5	38.7	210	3,000	525	7,500	160
1.1/4"	32	46.7	210	3,000	525	7,500	250

Wire Reinforcement Thermoplastic Hose
Inner Tube (Polyamide), Reinforcement (layers of high-tensile steel wire braid), Outer Cover (Polyurethane) , Color is black,other colors upon request, Temperature: from -40ºC up to +90ºC
Applications: It is suit for many types of liquid, gas, powder, various of oil and chemicals, etc. It is also suit for high pressure spray-paint hose&sewer cleaning hose&High Pressure Hydraulic Systems.
We can also supply assembly hose to you. The details of end fittings, please choose it from our catalogue or we manufacture it upon your request.
SIZE	Model No	I.D.	O.D.	Working Pressure	Burst Pressure	Min. Bend Radius	SIZE	Model No	I.D.	O.D.	Working Pressure	Burst Pressure	Min. Bend Radius
		mm	mm	bar	bar	mm			mm	mm	bar	bar	mm
GS-4	1	4	9.1	450	1,350	70	GS-19	1	19	25.3	130	390	200
	2	4	10.8	650	1,950	75		2	19	27	200	600	210
	3	4	10.3	750	2,250	100		3	19	30	280	840	280
	4	4	12	1,200	3,600	110		4	19	33	460	1,380	290
GS-6	1	6	11.3	400	1,200	80	GS-22	1	22	28.5	110	330	220
	2	6	13	600	1,800	85		2	22	30.2	170	510	230
	3	6	12.4	700	2,100	110
	4	6	14	1,000	3,000	120
GS-8	1	8	13.3	300	900	100	GS-25	1	25	31.7	100	300	250
	2	8	15.1	450	1,350	105		2	25	33.4	150	450	260
	3	8	14.7	600	1,800	120		3	25	36	210	630	400
	4	8	16.1	800	2,400	130		4	25	39	350	1,050	420
GS-10	1	10	15.4	250	750	120	GS-32	1	32	38.9	70	210	280
	2	10	17.2	350	1,050	125		2	32	40.6	110	330	290
	3	10	17.7	550	1,650	140		3	32	47	200	600	450
	4	10	19.9	800	2,400	150		4	32	50	320	960	470
GS-13	1	13	18.7	200	600	150	GS-38	1	38	45	50	150	320
	2	13	20.5	300	900	160		2	38	47	90	270	340
	3	13	23	500	1,500	190		3	38	51	170	510	480
	4	13	22.6	700	2,100	200		4	38	54	250	750	500
GS-16	1	16	22	150	450	180	GS-51	1	51	58.2	30	90	500
	2	16	23.7	230	690	190		2	51	60.4	80	240	550
	3	16	26.6	300	900	250		3	51	64	140	420	600
	4	16	29	550	1,650	260		4	51	67	200	600	650
Other sizes of hose can be made upon your request
