Waste High Tech Recycling Automatic Fine PE PVC Pulverizer/ Plastic Milling Machine / Grinding
| US$5,000.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XT600
Installing
Engineers Overseas Installation
Name
Plastic Miller
Disc Type
Disc Pulverizer
Material for Blade
D2
Type
Impact Crusher
Object
Plastic
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Extruding and Milling
Principle
Roller Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Combination Tongs
Transport Package
Film Package or Woodcase Package
Specification
3000*2500*6000MM
Origin
China Zhangjiagang City
HS Code
8474209000
Production Capacity
Max Capacity 800kg/Hr
Product Description
plastic pulverizing machine for PP PE PVCDescription pvc pp pe eva plastic miller :
This PVC Plastic PE mill is chiefly designed to grind PVC and PE. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our pulverizer can reach 100-900kg/h (15-100mesh).

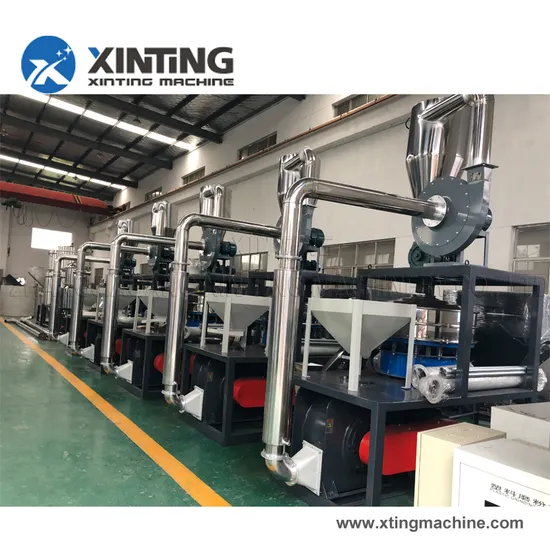

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Parameters for miller machine
| Model | XT-500 | XT-600 | XT-800 |
| Disc Diameter | 500mm | 600mm | 800mm |
| Speed | 3700RPM | 3500RPM | 3200RPM |
| Main Motor | 37KW | 55KW | 75KW |
| Capacity | 150-280kg/h | 200-550kg/h | 450-850kg/h |
| Powder Size | 15-120mesh | 15-120mesh | 15-120mesh |
