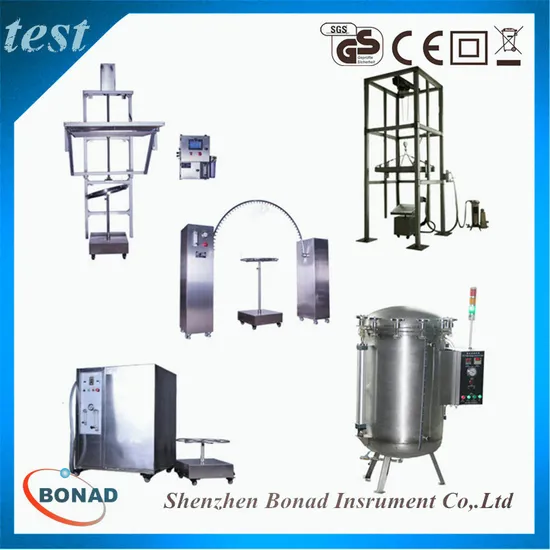

IP Code Waterproof Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6 Ipx7 Ipx8 Test/Testing Equipment

Product Description

IP Code Waterproof Ipx12 Ipx34 Ipx56 Ipx78 Test/Testing Equipment
1,Vertical rain-drop tester (IPX1, IPX2)
2. Oscillating Tube Tester ( IPX3, IPX4)
3.Strong Water Jet Test Equipment(IPX5,IPX6)
4.Smart Water Supply And Control System ( IPX7)
5,IPX8 Water Immersion Test Chamber
6,Spray Nozzle ( IPX3, IPX4)
7,Hand-held Jet Nozzle ( IPX5-6.3mm,IPX6-12.5mm)
IPX Waterproof Test Equipment Description:
Water Resistance Test Rain Test Chamber designs according to the standard of IEC60529, GB2423, GB7000.1, GB4208-1993,(shell protection grade).
This machine is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.

Applicable Industries:
It is applied to plastics, rubber, paint, coatings, printing ink, paper,
pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products; it provide an important testing data for scientific research, product development and quality control.
1. Vertical rain-drop tester (IPX1, IPX2)
This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2.
The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test;It is also equipped with 15°bevel for supporting sample for the IPX2 test. What's more, this device is with the clean water filtration unit which can prevent pinhole from jamming.

Technical parameter :
No.	model	BND-IPX12A-600
1	Drip area	600*600 mm
2	Inner size	L800*D800*H1000mm
3	Outer size	About 1250*1000*1750mm
4	Turntable diameter	¢600 mm
5	Turntable bearing	50KG
6	Turntable lifting range	350-700 mm
7	Dripping aperture	¢0.4mm.
8	Distance between holes	20*20 mm
9	Rainfall	1-5 mm/min(±0.5mm/min)
10	Flow adjustment mode	Manual
11	Drop box height	stationary
12	Turntable speed	1 r/min
13	Turntable tilt	0° or 15°
14	Testing times	0-999 min
15	protector	Leakage, water short-circuit
16	voltage(V)	220V
17	power(KW)	1.0
18	standard	IEC60529:1989+A1:1999,GB4208,GB7000.(IPX1,IPX2)

2. Oscillating Tube Tester ( IPX3, IPX4)
Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. It is used for the waterproof test of the electrical equipment.
The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.
The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming

Technology parameter:
No.	Model	BND-IP34C-R1200
1	Swing pipe size (mm)	R1200 (Can customize R1000,R800,R600,R400, R200swing pipe)
2	External dimensions (mm)	L3200*D2400*H2400
3	Flow (L / mm))	0-6L/min
4	Turntable Size (mm)	∮800 (can customize∮600,∮400,∮200 turntable)
5	Turntable height adjustable range	1350-1950mm
6	Pendulum tube diameter (mm)	>15
7	Water pore size (mm)	0.4 mm
8	Pendulum tube angle	120º(IPX3), 350º(IPX4)or customize
9	Swing speed tube	120°(to and fro) 4S,360°(to and fro) 12S(accurate control)or customize
10	Swing pipe material	SUS304 stainless steel
11	Turntable speed test	1-5r/min(accurate control)
12	protective device	Leakage, water shortage, short circuit
13	Power supply (V)	220V
14	Power(KW)	1
15	Standards	IEC60529:1989+A1:1999,(IPX3,IPX4)

3. Ipx5 Ipx6 water spray test device (IPX5, IPX6)

Model	BND-IPX56PX
Inner size(mm)	W 600×D600×H600
Outer size(mm)	W1050(water pipe W3300)×D780×H1650
IPX5 diameter(mm)	6.3
IPX6 diameter(mm)	12.5
IPX5 flow(L/min)	12.5±0.625
IPX6 flow(L/min)	100±5L/min
Power(Mpa)	According to the provisions of water flow regulation
spray water distance	2.5*3m
Pump	GuangZhou Linxiao stainless steel multi-stage pump
Spray nozzle fixing means	machinery fixation
Water pipe materials	Stainless steel+PPR
Inner box materials	SUS304#stainless steel
Turntable diameter(mm)	400/600
Sample table materials	SUS304#stainless steel plate
protector	Electric leakage, water-break, cutting-out
Power supply(V)	380V
Power(KW)	3
Standard	IEC60529:1989+A1:1999,GB4208,GB7000.(IPX5)

4. BND-IPX7A immersion test equipment (IPX7)

Technology parameter :
No.	Model	BND-IPX7A-432L	BND-IPX7A-768L	BND-IPX7A-1200L
1	Inner size (mm)	600*600*1200	800*800*1200	1000*100*1200
2	External size (mm)	660*660*1400	860*860*1400	1060*1060*1400
	Tempered glass thickness	12(mm)	12(mm)		15(mm)
3	Test the maximum water depth	1.2m
4	Water level adjustment method	Manual adjustment
5	Water level display	Stainless steel ruler(show several degree 1mm)
6	Rack material	Stainless steel
17	Standard	IEC60529:1989+A1:1999,GB4208,GB7000.(IPX7)
