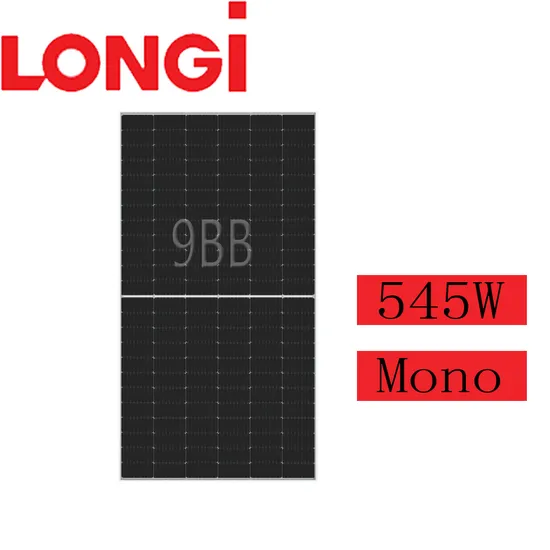

Longi Solar Panel Mono Half Cell 525W 530W 535W 540W 545W PV Module for Home Solar Power System
| US$0.08-0.11 | 5,000 Watt (MOQ) |
Basic Info.
Model NO.
LR5-72HBD
Application
Solar System
Condition
New
Certification
EST, ISO, CE, TUV
Material
Monocrystalline Silicon
Weight
32.3kg
Backsheet Color
White or Black or Transparent
Frame Color
Black
Frame
Anodized Aluminium Alloy
Mechanical Load
5400PA
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Packaging
31PCS Per Pallet / 155PCS Per 20′ Gp / 620PCS Per
Dimension
2256X 1133 X 35mm
Junction Box
IP68, Three Diodes
Cell Orientation
144 (6X24)
Fire Rating
Type 29
Maximum Series Fuse Rating
30A
Operational Temperature
-40°c ~ +85°c
Power Output Tolerance
0~+5 W
Protection Class
Class I
Transport Package
Carton Box
Specification
2256*1133*35mm
Trademark
Longi
Origin
China
HS Code
8541402000
Production Capacity
5000PCS/Week
Product Description
Longi Solar Panel Mono Half Cell 525W 530W 535W 540W 545W PV Module for Home Solar Power SystemProduct Description
Detailed Photos Product Parameters
| Power Class | 520 | 525 | 530 | 535 | 540 | 545 |
| Maximum Power (Pmax/W) | 520W | 525W | 530W | 535W | 540W | 545 |
| Open Circuit Voltage (Voc/M) | 48.90 | 49.05 | 49.35 | 49.50 . | 49.65 | 49.65 |
| Short Circuit Current (IsC/A) | 13.57 | 13.65 | 13.71 | 13.78 | 13.85 | 13.92 |
| Voltage at Maximum Power (mp/M) | 41.05 | 41.20 | 41.35 | 41.50 | 41.65 | 41.80 |
| Current at Maximum Power (Imp/A) | 12.67 | 12.75 | 12.82 | 12.90 | 12.97 | 13.04 |
| Module Eficiency(%) | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 |
FAQ A: What's your main products? Solar system, solar panel, inverter, controller, battery and mounting system and all the related soar power accessories. B: Are you a factory or trading company? We are a manufacturer with export license.And we have certificates.
C: Could you print our company logo in nameplate and package? Yes, we can do it according to your design.
D: Can you support OEM and on-site installation? Yes,as a professional solar system manufacturer, we can offer our clients OEM and on-site installation, fully support and assistance in service.
E: How does your factory carry out quality control? Quality is priority. We have professional QC feam to carry out the Quality control. F: What is your advantage in Solar Energy System? Automatic production line with international advanced production equipment from Japan and Germany. Price is competitive.
