Vacuum Meat Cutting Mixing Machine Meat Grinder Vegetable Bowl Cutter

Product Description

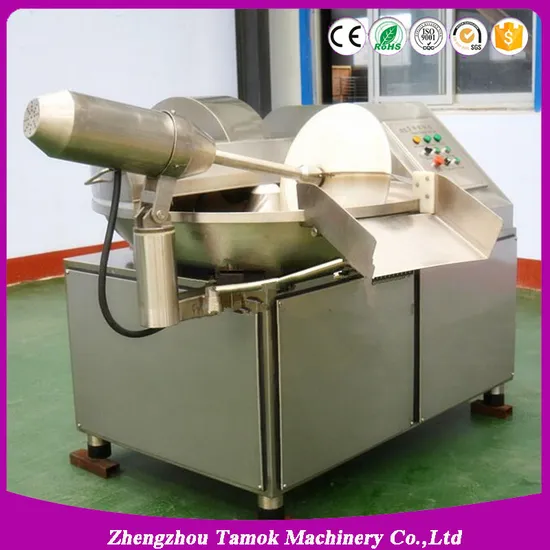

Vacuum Meat Cutting Mixing Machine Meat Grinder Vegetable Bowl Cutter
Bowl Cutter is designed to chop the meat or vegetable food processing machinery by our factory.It couldcut up the meat,vegetables,melons and fruit fast.So it could be used for stuffing.that machine adopted the worm wheal and worm to dead reduction drive,compact structure,That is a beautiful appearance,easy operation,high benefit machine.That is ideal food processing tool of hotel,restaurant,collective canteen,and food processing plant.
Features
1.Utilize the cutter rotating with high speed to cut the meat,condiment and additive into meat paste;
2.Have the most suitable combination of the cutting speed,pot speed and the distance between the cutter and rotating pot;
3.Manufacture with stainless steel.Carefully designed with excellent moving balance. Low noises;
4.Bowl adopts good quality stainless steel,with anti-overflow pan edge.Avoid flash overflow;
5.Controller is installed separately,with waterproof and moisture protection;
6.The processed meat is of good emulsification and best quality.
7.Blades are made of special materials and technology. It can be equipped with imported blades , rolling stainless steel pot , which can stop the materials overflow the pot.
8.Chopping bowl is double speed , which can cooperate with any speed .

How it works
1.turn on the main switch
2.press the low speed knives button(Knife -slow ),the indicator on.
3.press speed spin pot button( bowl start ),the spin pot run at speed.
4.According to the process press the high speed button(Knife -high ),the knives runs at high speed.
5.Press the high speed button.The spin pot runs at high speed
Technical parameters

Model	ZB-20	ZB-40	ZB-80	ZB-125	ZB-200
Capacity (L)	20L	40L	80L	125L	200 L
Power (Kw)	1.85 kw	6.25 kw	15 kw	23 kw	63 kw
Knife Qty	3	3	6	6	6
Speed (rpm)	1600/3300	1800/3600	200/1800/3600	200/1800/3600	200/1800/3600
Material	SUS 304	SUS 304	SUS 304	SUS 304	SUS 304
Main size (mm)	770*650*980	1245*810*1094	2300*1020*1195	2400*1420*1300	2580*2400*1960

Model	Power	Electricity	Motor Speed	Pan Speed	Volume	G.W.	N.W.	Packing Size
Q-8	0.55 kw	110V/60HZ 230V/50HZ	1400 rpm	12 rpm	5.5 L	46.82 kgs	36.70 kgs	761x552x527 mm
Q-14	0.75 kw	230V/50HZ	1440 rpm	12 rpm	10 L	67.30 kgs	53.80 kgs	825x575x522 mm
Q-20	1.5kw	110V/60HZ 230V/50HZ 380V/50HZ	1400	12 rpm	24 L	125kgs	161kgs	1000*795*1085mm

Pictures
Blade details
Product after chopping
We also have meat dicing machine,meat slicer,meat mincer,meatball making machine,meat patty forming machine,etc,welcome to inquiry!
