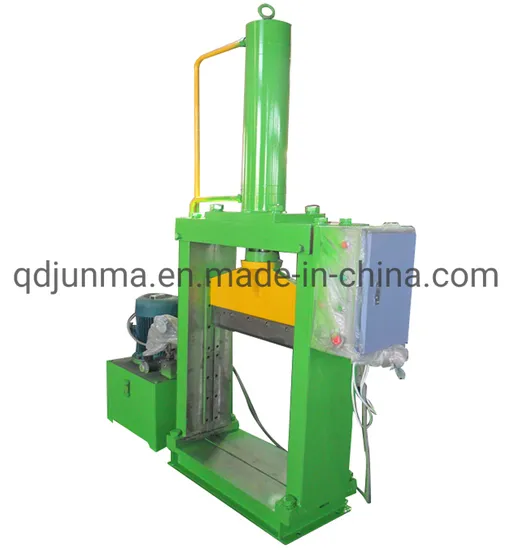

Rubber Bale Cutting Machine for Raw Rubber Material

Product Description

rubber bale cutting machine for raw rubber material
Feature:
This machine is mainly used for cutting natural rubber,synthetic rubber and other plastic material.It is especially suitable installed beside the rubber internal mixing mill to cut small rubber bolcks.
This machine consists of single knife,body stand,working cylinder,base,auxiliary working platform and hydraulic&electric systems.It is configurated with nylon bed(or casting lead pad) to protect the edge of the knife.
When cutting the rubber,the worker need to put the rubber stuff below the cutting knife and then pluse on the button to realize the knife falling by following the race on the body stand drived by the piston rod.
It is configurated with 2 switchs to control the selector valve to chage the working direction of the cutting knife.Simultaneously,it can also protect the cylinder head of the cylinder.
Rubber Bale Cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.

type	XQL-80	XQL-120	XQL-125
Width(mm)	660	760	760
Stroke(mm)	680	680	780
Total Pressure of Oil Cylinder(KN)	80(about)	120(about)	125(about)
Time Taken by the Stroke	14-16	13-16	14-16
Power(KW)	5.5	5.5	5.5
Overall Diameter (LxWxH) (mm)	1800x600x2450	2300x1500x2530	2400x1500x2530

Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
Welcome your inquiry!
