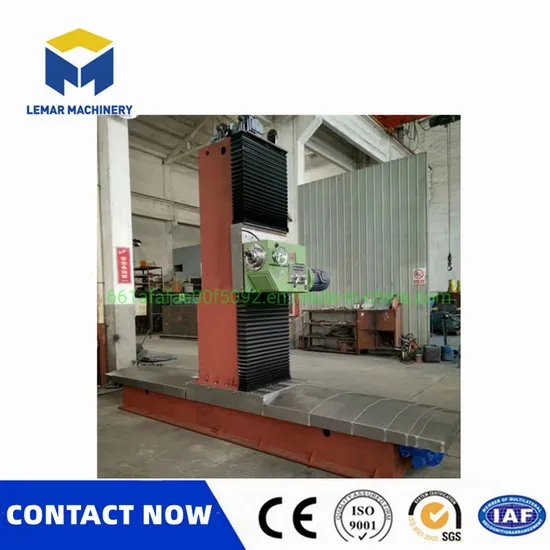

Dx 1512 Box Beam 0-45 Dgr End Miller Face Milling Machine

Product Description

DX 1512 Box beam 0-45 dgr End miller face milling machine In the production of box beams, it is necessary to use an end milling machine after the H beam flange plate is corrected and qualified.
At the same time, necessary measures should be taken according to the form of the steel structure to ensure that the milled end face of the Box beam is perpendicular to the axis Optional size:
800*1000mm End face milling machine
1200*1200mm End face milling machine
1500*1500mm End face milling machine
1500*2000mm End face milling machine
1500*3000mm End face milling machine
2000*2500mm End face milling machine
2000*4000mm End face milling machine
3000*6000mm End face milling machine
Technical Details:

Model	DX1512
Machining range of face(mm)	1500×1200
Horizontal the milling speed(mm/min)	50-500
Vertical milling speed(mm/min)	22-600
Horizontal motor (kw)	4
Vertical motor (kw)	1.5
Milling angle(°)	0-45
Milling Head Specifications	TX32A
Milling head power (kw)	5.5
Cutter rotational speed(rpm)	125-1440
Applicable cutter diameter(mm)	125~250
Gross Weight (t)	7.6
Maximum milling depth at one time(mm)	5mm
Hydraulic system working pressure	4Mpa

Lemar has more than 10 years of experience specializing in mechatronics products such as cutting and welding equipment, CNC machinery, robot auxiliary equipment, etc.; has cultivated a team of experienced and highly skilled talents
Our main products are:
Box beam production line series
H-beam production line series equipment
U-beam production line series equipment
Wind tower production line
CNC cutting series
Shot blasting machine
Automatic welding center
Automatic welding manipulator
Welding positioner
Welding roller frame displacement Machines and other special machines, auxiliary machines, edge milling machines, end milling machines, steel plate splicing machines, etc.
The products cover all parts of the country and are exported to Europe, America, Southeast Asia and the Middle East and other countries. It is one of the domestic H-beam production line export bases. Economic globalization has brought unprecedented development opportunities to Lemar Machinery.
In the wave of economic globalization, we will build a world-class brand and move towards a higher goal!
