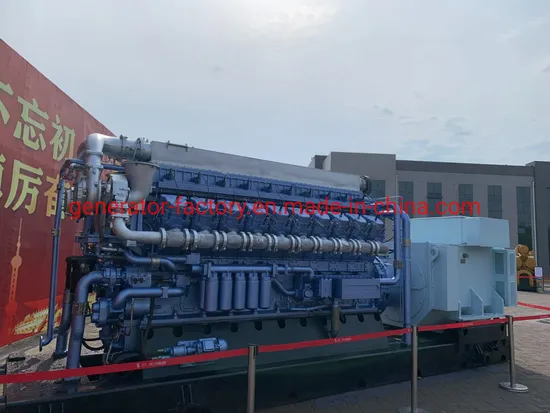

Dynamic 1.7MW 20V190 Gas Engine Generator Set
| US$350,000.00-400,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
20V190
Output Type
AC Three Phase
Gas Source
Natural Gas
Certification
CE, ISO, CCC
Power
1700kw
Standard
Standard
Fuel Type
Natural Gas, Biogas, Landfill Gas
Operation
24/7 Continuous Operation
Voltage
400V-11kv
Engine Manufacturer
Dynamic Energy
Speed
1000/1200rpm
Turbocharging System
ABB or Equivalent
Transport Package
Flatrack Container
Specification
1700KW
Trademark
Dynamic
Origin
China
HS Code
8407909090
Production Capacity
500
Product Description
General engine specification:| Engine type | 20V190 | |
| Working principle | 4-stroke, with turbocharger, and intercooler | |
| Configuration | 20 cylinders, V-60° | |
| No. of cylinders | 20 | |
| Bore | mm | 190 |
| Stroke | mm | 210 |
| Compression Ratio | 9: 1 or as customer requirement | |
| Total displacement | L | 119 |
| Rated power | kW | 1300-1700 |
| Rated speed | r/min | 1000 for 50HZ application 1200 for 60HZ application |
| Ignition method | Spark Plug Ignition | |
| Starting method | 24VDC motor | |
| Power output method | Flywheel output |
Applications:
Applicable fuel type:
Well head gas/natural gas,
Biogas/landfill gas,
Industrial flue gas (H2, CO, CH4)
Typical scenario:
Natural gas and coal mine gas power generation plant from 2MW to 20MW
Biogas and landfill gas power generation for renewable energy projects
Power generation with well head gas in oil & gas industry,
Compressor unit, or other rotating machineries (with shaft power input requirement bellow 1700KW).
