ASTM D2570 Boiling Point of Engine Coolants Tester

Product Details

Product Description

Product Description

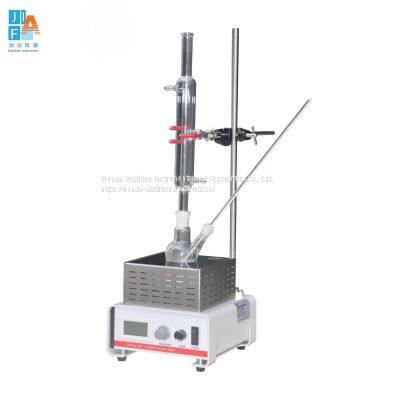

Boiling Point of Engine Coolant Tester ASTM D2570
Product model: JF0089
Introduction
This instrument is used to determine the equilibrium boiling point of engine coolant and is suitable for diluted or concentrated engine coolant. Take 60ml of the sample and put it into a 100ml beaker, heat it to boiling under normal pressure, when the gas-liquid equilibrium is reached, read the temperature of the sample, which is the boiling point of the sample after being corrected by the atmospheric pressure difference.
Technical Parameter
1. Applicable standard: ASTM D1120 SH/T0089
2. Heating method: electric heating
3. Cooling method: tap water circulation
4. Temperature control method: solid state voltage regulator
5. Machine power: 500W
6. Voltage display: digital display of voltmeter
7. Working power supply: AC220V/50H
8. Instrument size: 220*320*510mm
9. Net weight: 3.5KG
Performance characteristics
1. Infrared heating furnace, no radiation, fast heating speed;
2. One-piece structure, easy to operate
3. Tap water circulation cooling;
4. High-power solid-state voltage regulator controls the heater;
5. The surface is treated with electrostatic spray, which is convenient for cleaning;
6. Precision potentiometer adjusts the heating rate;
7. It is very convenient to contact the control box;
8. Digital display control voltage;
9. Meet the test requirements for antifreeze and brake fluid (need to be explained)
10. High temperature resistant glass partition;
