Forklift Tiller Heads Control Handle Temo200 Modular Design Allows Flexible Configuration Rema Frei Replacement

Product Description

Product Description

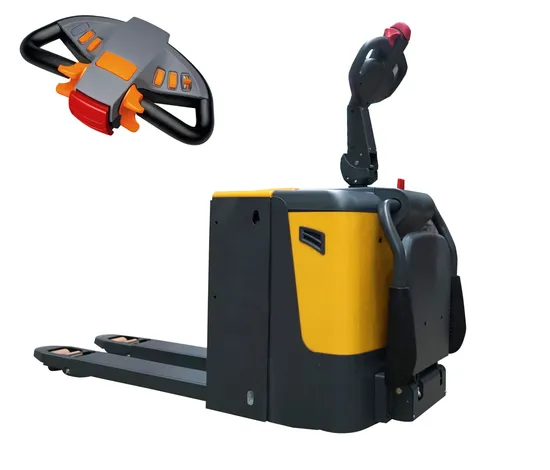

The TEMO 200 combines ergonomics and robustness. The modular design allows it to be used in many electric-vehicle applications. Features such as the traction switch, the body protection switch and the horn as well as an optional crawl speed switch on the underside are integrated in the housing. The upper housing cover can be fitted with up to two control elements from the T switch range, the POLLANA thumbwheel or the INDICATO battery-status display.
FEATURES AND ADVANTAGESTiller head with control elements for travel, horn, crawl speed and two auxiliary functionsNon-contacting Hall-effect technologyCompletely sealed electronic unitCANopen interfaceSealed connector to the traction controllerVarious colours for the controlsAbrasion-resistant laser inscription R D
Product Parameters
Rated voltage: DC24V-48V
Working temperature: -20ºC~50ºC
Communication method: analog communication or CAN communication; electrical function: key combination lock, LCD display (power, hour meter, turtle speed identification). Handles power calculations, up, down, forward, backward. Acceleration signal, horn signal output, anti-collision. Walk upright, lift and lock, and more.
Technical data

Operation elements
Horn	Microswitch NO Connector 2-pin
Optimum range of application	10 mA/5 V - 1.5 A/24 V
Creep speed (option)	Microswitch NO
Optimum range of application	5 mA/3 V - 50 mA/24 V
Tiller tube	Max. 40 x 70 mm
Standard colours
Operation elements (button)	RAL 9005 deep orange
Lower part with handle	RAL9005 et black
Top and bottom cover	RAL 7015 slate grey
Personal protection switch	RAL 3000 flame red
Connector system	Molex Mini-Fit, Jr.™
Operating conditions
Operating temperature range	-40°C to +85°C
Vibration test:	Based on IEC 68-2-6
Degree of protection according to DIN 40050	Tiller head IP 40 Operation elements and traction switch at least IP 54

Button/rocker switch/switches:Max. breaking capacity 48VDC / 1AMin. breaking capacity 24VDC / 10mAAnalogue switches:Max. breaking capacity 48VDC / 4mA switching currentWiper current < 0.1mASignal horn: Micro-switch NO with Connector 2-pinOptimum switch current: 5mA / 5V - 1.5A / 24VThrottle Unit:Supply24V - 48V nominal14V - 69V maximumOutput0 - 5V+24V Forward+24V Reverse REMA Tiller Head for Auto Use 0-5v Specifications:
Model: TH-1Operating Voltage: 24V DC nominal (19.2V DC - 28.8V DC, absolute)Throttle Output: 0.2 - 5.0V DC nominal (0.15V DC - 5.3V DC, absolute)Maximum current, output switches: 2A each (lift, lower, horn, turtle)Weight: 1.5 kgDetailed Photos
Hot sale Products
New energy tram in orchard field
E-CAS 100H E-CAS 250H E-CAS S400

AC&DC Controller Used in Various kinds Vehicle and Electric Machine
Packaging & Shipping
We have a 24 hours *7 days friendly and professional customer service team, providing a strongly 1-year at least warranty and free lifelong technical support. All products will be tested for capacity and checked for external damage before packaging. And we provide English guideline and user manual to help you operate battery easily and quickly.
Company Profile
Anhui Ekofil Autopats Company
Our company is located in HEFEI City, ANHUI Province China, is the large-scale professional agriculture Machinery,Forklift Parts manufacturer with integration of manufacturing, export and after-sale service. Establish in 2017, by now Forklift electrical accessories basically cover the vehicles of major domestic brands( Such as Zhongli,Nuoli,Afterburner,Heli,Baoli,TCM TEU)
The company′s main products cover Electric Vehicles,Electric Forklifts,Motor Controller ,Lithium battery and sell parts and accessories for electric Vehicles ,including motors Electric Controls ,meters,accelerators,control handles ,DC converters,power connectors ,wiring harness,Various electrical switches and so on.
We have professional quality inspection department, every machine will be tested 3 times before delivery in order to make sure the machinery in future.
With high quality product, competitive price, and best after-sale service, we have gained good reputation from all over the world, such as Europe, South Korea North, America, Central and South America, Africa, Australia, New Zealand and so on.Base on it ,we welcome buyers from all over the world.
FAQ
Q1.Can I have a sample order?A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?A: Small quantity is accepted , but we offer quantity discount.
Q3. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.
Q6. Is it OK to print my logo on the product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. How to proceed an order?A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production and Shipping.
