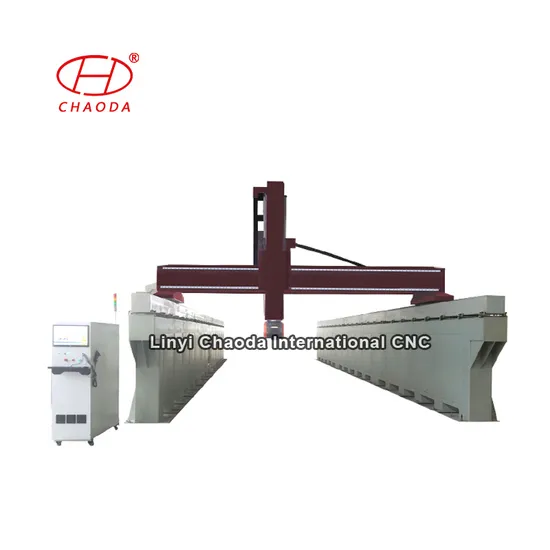

China Large 4015 CNC Router 5 Axis Machine for Big Mould Making
| US$10.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JC4015-5AXIS
Spindle Number
Single-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE, BV, TUV, SGS
Customized
Customized
Condition
New
Color
Customized
Product Name
4015 CNC Router 5 Axis Machine for Big Mould
Structure
Thick Steel Wall Structure
Spindle Power
10/15kw
Table
No
Working Area
4000X15000X1500mm
Driving System
Servo Motor and Driver
Inverter
Delta
Option
3D Scanner
Transport Package
Wrapped with Protection Film,Fasten by Metal Wires
Specification
customized
Trademark
CHAODA
Origin
China
Product Description
china large 4015 cnc router 5 axis machine for big mould makingAll machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining.
| Model No. | JC4015-5AXIS |
| X,Y,Z,A,C working size | 4000*15000*1500mm* ±120°* ±245° |
| Whole structure | heavy duty steel wall structure |
| Table surface | no |
| Spindle | 10KW/15KW ATC spindle, cooled by liquid |
| Tool magazine | Disk type automatic tool changer, with 8pcs tool magazine |
| Driving system | Japan YASKAWA servo motor and driver |
| Inverter | Delta |
| Operating system | 5 axis Syntec (option:OSAI) |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Running environment | Temperature: 0ºC-45ºC; Relative humidity:30%-75% |
It can process many materials,like eps foam,woods, MDF, Composite boards, ,PVC, Rigid plastics,polyester,
fiberglass, Acrylic,Organic glass, Aluminum,etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
