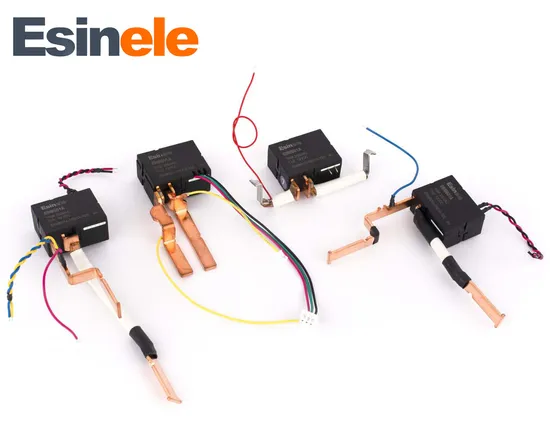

90A 250VAC 12VDC Automatic Control UC2/UC3 Switch Single Pole High Power Electromagnetic Latching Relay
| US$2.00-4.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
ERM601A
Phase
1
Electricity Type
Ac
Number of Pole
2
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Contact Form
1A/1b
Coil Voltage
9-48VDC
Coil Type
Single Coil and Double Coil Optional
Switching Current
100A
Contact Material
Agsno2
Transport Package
Box, Carton
Specification
38*30*18.5 mm
Trademark
Esinele
Origin
Zhejiang, China
HS Code
8536411090
Production Capacity
1000000/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
ERM601ACharacteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance. ERM601A
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance.
Product Parameters
| Contact Specification | |
| Dimensions(mm) | 38×30×18.5mm |
| Contact Form | 1A/1B |
| Contact Material | Silver Alloy |
| Max Switching Current(Anti-load) | 100A |
| Max Switching Voltage | 28VDC/250V AC |
| Max Switching Power | 2800W/25000V A |
| Wight | 45g |
| Coil Specification | |||||
| Rated Coil Voltage | 9VDC | 12VDC | 24VDC | 48VDC | |
| Rated Coil Voltage | Single Coil (±10%Ω) | 40.5 | 72 | 288 | 1152 |
| Double Coil (±10%Ω) | 20.25 | 36 | 144 | 576 | |
| Power Consumption | Single Coil 2.0W;Double Coil 4.0W | ||||
| Pick-up Voltage | ≤75% Rated Coil Voltage | ||||
| Drop-out Voltage | ≤75% Rated Coil Voltage | ||||
| Max. Applicable Voltage | ≤120% Rated Coil Voltage | ||||
| Pick-up Time(At Rated Voltage) | ≤30ms | ||||
| Drop-out Time(At Rated Voltage) | ≤30ms | ||||
| Bounce Time | ≤2ms | ||||
| Characteristics | ||
| Ambient Temp | -40~+70ºC | |
| Ambient Humidity | ≤75% Annually average | |
| Anti-vibration | 10~55Hz, 0.5mm (Double Amplitude) | |
| Anti-shock | 98m/s2 , 11ms | |
| R.H. | 45%~85% | |
| Contact Resistance | ≤2.0mΩ (1A/6VDC) | |
| Insulation Resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 2000VAC 50/60Hz(1 Minute) |
| Between Contact & Coil | 4000VAC 50/60Hz(1 Minute) | |
| Life | Electrical Life | ≥1×104 OPS |
| Mechanical Life | ≥5×106 OPS | |
| External Diagram |
| Wiring Diagram |
Production Equipment
FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
