New Smart 3D Multifunctional Busbar Processing Machine

Product Description

Product Description Experience the cutting-edge innovation with our Intelligent All-in-One Machine. Complete and ready for export, it simplifies deployment with zero installation required.
1. The shearing unit boasts an integrated structure with an innovative and unique design. This ensures optimal stress distribution, guaranteeing long-lasting usage without any deformation.
2. The Bend Unit features an integrated structure and utilizes CNC angular methods. This allows for simple operation with exceptional accuracy.
3. Our machine is engineered with a dual-layer platform design, permitting simultaneous operation of all three units.
4. Equipped with an automatic refueling and draining system for seamless maintenance.
5. Crafted with a stainless steel oil tank, our machine prevents corrosive degeneration of hydraulic oil, thus extending the lifespan of both the hydraulic oil and sealing components.

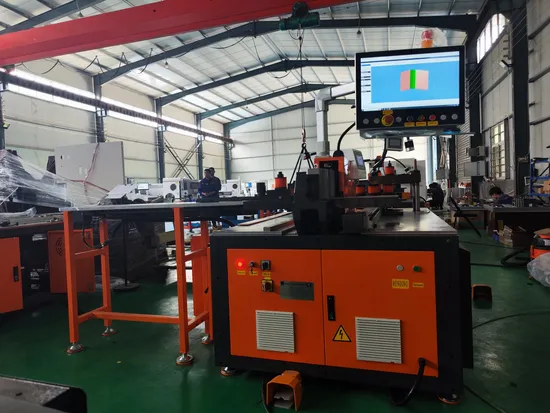

6. Enjoy the reliability and stability of PLC control technology. New Intelligent 3D Multifunctional Busbar Processing Machine Detailed Photos Installation Instructions

Whole-Installed Shipment, do not need to install.

Main Technical Parameters

Item	Unit	Parameter
Nominal Force	KN	300
Bender Accuracy	Degree	±0.2
Max Bending Stroke	mm	250
Automatic Stroke	mm	1000
Max Motion Speed of Side Striker(X Axis)	m/min	15
Bending Head (Y Axis)	m/min	Fast: 5; Low: 1.25
Min Inner Width of U-shape Bend	mm	40 (Note:Please consult us for smaller dimensions)
Max Punching Capacity	mm	160x15mm
Max Cutting Capacity	mm	160x15mm
Max Bending Angle	degree	90
Level Bending (W*H)	mm	160 × 15 (Customerized 250x20mm)
Vertical Bend (W*H)	mm	125×15
Total Power	kw	7.2
Main Machine Dimension: L*W	MM	1500x1200x1200
TOTAL Weight	kg	2000kg

Our Advantages

Windows All in One Touch Screen Computer First 3D Busbar Design Software which can read CAD or Solid work drawings and Do Bending from your Drawing Directly!

Wifi and ready for your Industry 4.0

Greatly Save and Benefit Customer

Packaging & Shipping
Certifications
Exhibition Photo
Our Service
--- Inquiries are responded to within 2 hours.
--- Comprehensive tracking service provided from order placement to delivery.
--- We offer professional installation guidance.
--- One-year warranty with comprehensive after-sales service.
--- Custom designs and flow charts are available to meet our clients' needs.
--- Independent R&D team coupled with a strict and scientific management system.
