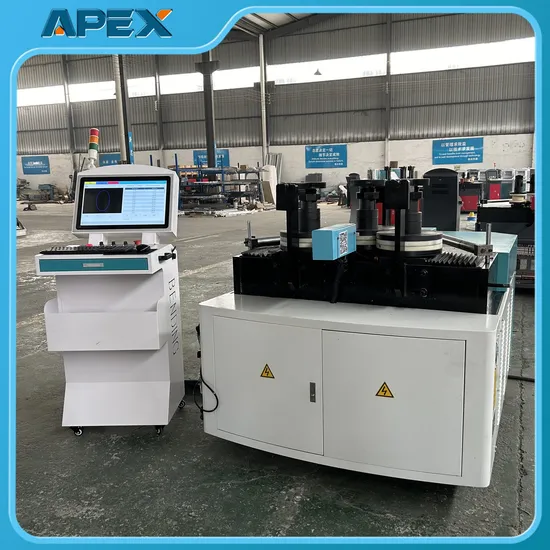

Practical Hot Sale Industrial Computer Control Hydraulic 3 Roll Bending Machine Aluminium Profile

Product Description

Product Description

Finished product display:
Product Parameters
Detailed parameters:

Power supply	600/450/380V/220/50HZ/60HZ
Input power	11.6KW(energy efficiency)
Working pressure	0.2Mpa
Min diameter of bending	100mm
Max width of profile	H300×W200
Max diameter of rolls	300mm
Lower shaft center-dimensions	550mm-850mm
Hydraulic cylinder pressure	40T
Rolls-holding shaft diameter	82mm(40 chromium)
Rotation speed of shaft	1-15r/min
Positioning precision	±0.02mm
Top roll runout	0-220mm
Torque	9900N
	1900*1500*1700mm
	2500kg

Weight & Size:

Overall dimension	1900*1500*1700mm
Machine weight	2500kg

Packaging & Shipping

Minimum order quantity (MOQ)	1 Set
Delivery time	About 35 workdays
Port of loading	Qingdao Port
Type of payment	Payment is mainly in the form of TT and can also be negotiated with the customer.
Export	To more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc
Packing method	The main body of the machine is outsourced with plastic film (dustproof, corrosion prevention), which is loaded into the container and fixed in the appropriate container with steel cables and locks, suitable for long-distance transportation. (Or according to customer requirements)

Company Profile
ABOUT US:
FACTORY DISPLAY:
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
