ASTM D2255 Textile Yarn Examining Machine with Factory Price

Product Description

Product Description

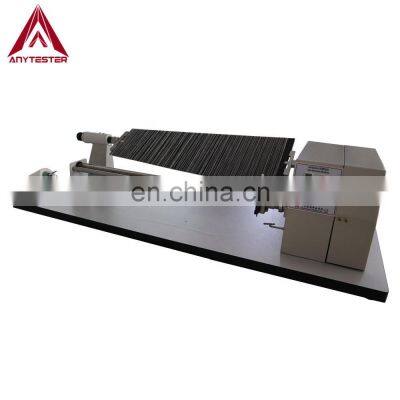

Product DescriptionHY0381 Series Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.StandardASTM D2255GB/T 398, 5324, 9996FZ/T 32004, 32005SpecificationModelHY0381HY0381AHY0381MBoard size220×250mm(L×W)575mm×250mm×160mm(L×W1×W2)300×225mm(L×W)Board shapequadratetaperedquadrateYarn winding density7, 9, 11, 13, 15, 19wraps/cm35, 40, 45, 50wraps/10cmRotational speed10~400RPM (adjustable)Power supplyAC220V 50Hz, 55WDimensions (L×W×H)620×370×340mm1000×370×300mm620×370×340mmWeight30Kg35Kg30KgDetails & Features★ Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test★ Various pitches to satisfy comprehensive requirements of different yarn linear density;★ Two type board for selection, white board for black yarn (HY381A)★ Equipped with alternative pre-tension device★ Auto-stop function★ Adjustable winding speed★ The material of board is aluminum, it’s more durable.★ Perfect winding appearanceOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
