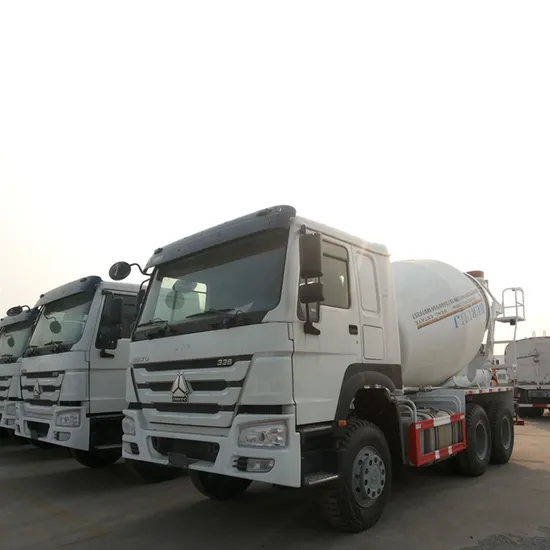

Sinotruk HOWO 6X4 336HP 9cbm Concrete Mixer Truck Zz1257n3847W

Product Description

SINOTRUK HOWO 6X4 336HP 9CBM Concrete Mixer Truck ZZ1257N3847W
HOWO-A7 design embody the leadership quality of heavy duty truck, it is a new design by the famous Italian designer according to the international heavy duty truck trend and European classic design style, comfort, active and passive safety, reliability and intelligence are up to the international level.

Model		ZZ1257N3847W
Cabin		HW76, with two seats and one bed, with Air Conditioner
Engine	Model	WD615.69
	Horse Power (Hp/rpm)	336/2200, Euro II Emission
	Max.Toruqe(Nm/rpm)	1350/1100-1600
	Displacement L	9.726
	Type	DIESEL, 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
Transmission		HW19710, 10 speeds forward and 2 speed reverse, with High and Low Gear
Front Axle		HF9, Steering with double T-cross section beam, Loading Capacity:9,000KGS
Driving Axle		HC16, Pressed axle housing, central reduction with hub reduction with differential locks between wheels and axles, ratio: 4.8, option: 5.73
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		ZF8118, Hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire		12.00R20, Option: 12.00R22.5, 295/80R22.5, 315/80R22.5, 11.00R20
Fuel Tank Capacity (L)		400L Diesel Tank
Kurb Weight (kg)		13,500
Loading Capacity (kg)		27,500
Gross Vehicle Weight (kg)		41,000
Drum Capacity(m3)		9
Hydraulic System		PMP, ZF, Rexroth, Eaton for option,
Wheelbase(mm)		3825+1350
Max. Speed (km/h)		90
