Model | ERE10pro |
Operating Weight | 1000kg |
Digging Bucket Capacity | 0.023m3/120kg |
Engine | CHANGCHAI -192FAM |
Rated Power | 7.5kw |
Main Pump Flow | 18 |
Main Pump Brand | ZANEDA |
Overall Dimensions LxWxH) | 3127×950×2195mm |
Max. digging depth | 1735mm |
Max. dumping height | 2248mm |
Max. digging height | 3006mm |
Bucket digging force | 9.7KN |
Arm digging force | 8.6KN |
Total Length of Track on Land | 1220mm |
Platform Ground Clearance | 380mm |
Platform back turning radius | 810mm |
Chassis Width | 870mm |
Track width | 180mm |
Chassis Ground Clearance | 94.5mm |

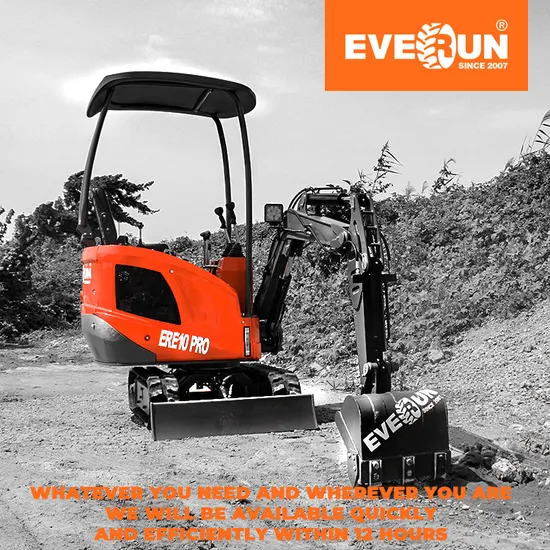

EVERUN Ere10pro 1ton 1. With 120° deflection boom, 30° left and 90° right.2. The competitive price that makes you scream!3. The appearance is designed by the Italian designer.4. Increase air outlet, improve the heat dissipation capacity.5. Optional extension track.6. The actual weight can be 1.1 Ton.7. Using S355 steel material which is good steel plate strength. | |
1.Engine-CHANGCHAI-192FAM the engine has strong power and stable performance 2.Hydraulic Cylinders the structure is firm and the operation is stable 3.Control lever the operation is simple and easy to use 4.Dozer blade can be adjusted up and down, easy to backfill 5.Rubber belt track Strong and wear-resistant , little damage to the ground 6.LED headlights high brightness, long range, night can also be operated |
Model | ERE18 |
Operating weight (kg) | 1800 |
Bucket capacity (m3) | 0.06 |
Rated power (kw/r/min) | 19.1 / 2300 |
Overall Dimensions ( LxWxH) | 3800x1060x2300mm |
Total Length of Track on Land | 1250mm |
Track width | 230mm |
Max. digging depth | 2065mm |
Max. dumping height | 2220mm |
Max. digging height | 3025mm |
Bucket digging force | 14kn |
Arm digging force | 10kn |
Boom length | 1804mm |
Modei | ERE60 |
Bucket capacity | 0.22cbm |
Operating Weight | 6000kg |
Maximum Digging Height | 5750mm |
Maximum Digging Depth | 3860mm |
Max Digging Radius | 6170mm |
Rated Speed | 2.2/4.2km/h |
Power | 33.7kw |
Rated pressure | 24.5Mpa |
Dimensions ( LxWxH) | 5960x1960x2690mm |
Rated flow | 70L/min |
Bucket capacity (m3) | 1.6 |
Operating weight (kg) | 34100 |
Volume of fuel tank (L) | 595 |
Rated power (kw/r/min) | 198 |
Rated pressure | 37Mpa |
Track width | 600mm |
Max. digging depth | 7370mm |
Max. digging radius | 11100mm |
Max. dumping height | 7135mm |
Max. digging height | 10200mm |
