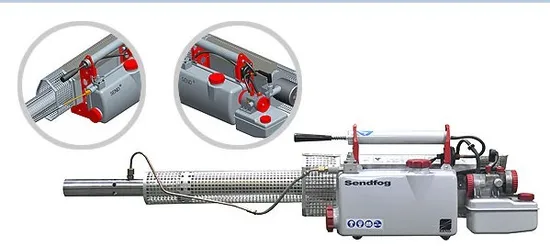

Thermal Fogger Machine Fogging Machine (AM-F02)

Product Description

Thermal Fogger Machine
Product Name: Auto ignition
Product Model: AM-F02
Simple operation, strong power, Auto ignition. Long range, droplet uniform and meticulous, can spray smoke and spray mist!
Fuel saving, strong power, longer range, the spraying effect is better.
The design of automatic ignition, start more simple
The precision throttle control system, more stable performance.
The efficient smoke tube ( standard parts ), smoke amount big, strong penetrating power, diffuse effect is good, efficient drug.
The atomizing pipe (optional parts ), spraying water mist can produce more delicate and fine droplet.
The solution tank, fuel tank use 1 mm thick quality 304 stainless steel plate be make, durable, corrosion resistance;
The light alloy protective net, compact structure and beautiful; Compliance with international safety standards;
It can spray smoke, and can spray mist, a multi-purpose machine;
The enhanced heat combustion chamber, spray efficiency than similar high 10~ 20%,
Easy detachable structure, convenient maintenance and repair, no tools can easily repair machines.
Technical parameters:
Size: 1345*280*330 (mm)
Packing size: 1200*320*350 (mm)
Fuel consumption: 1.6-2.0 litre /h
The spraying dosage: 5-60 litre /h
Maximum power: ≥ 19KW
Ignition mode: Automatic ignition
Safety net: Full protection
Spray smoke fog range: 15-30m
Water spray mist range: 8-12m
The fog particle diameter: The fog particle diameter less than 30 microns
Solution tank capacity: 6.0 litre
Solution tank pressure: 0.3-0.4bar
Fuel tank capacity: 1.8 litre
Fuel tank pressure: 0.12 - 0.15bar
Start power supply: 3V 2PCS 1# dry battery
The use of fuel: 93# above pure gasoline
Application carrier: 0 # diesel or white oil
Application of pharmacy: Oily, water-based agent or wettable powder
Net weight: : 7.5Kg
Gross weight: 12.5 Kg
Thermal Fogger Machine
Areas:
Scope of application: Large area crop, horticulture, greenhouse pest and disease control, food processing or farm disinfection, indoor and outdoor health and epidemic prevention, pest control and other special requirements of spraying water mist.
