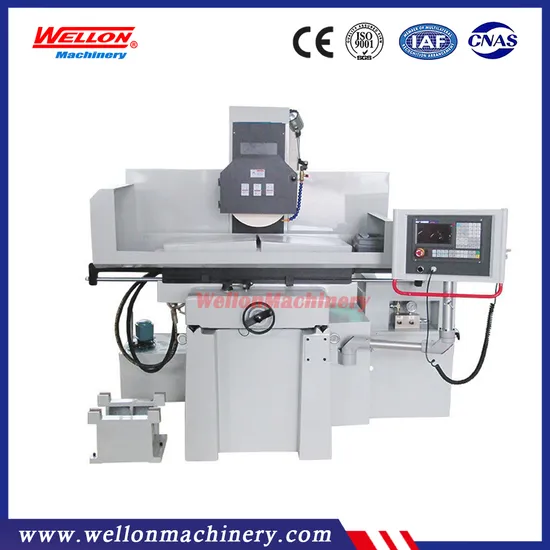

2 Axsi CNC Surface Grinding Machine MYK820 / MYK1022 / MYK1224 CNC Surface Grinder

Product Description

Product Description
Product Parameters

Performence Features:
1. The machine has reasonable structure , adopting cross saddle structure, good rigidity, beautiful
appearance, convenient operation;
2. Transverse movement(front and rear) of work table is driven by servo motor and transmitted by
precision ball screw which can ensure precision,accurate position,automatic feed according the
program and fast forward and rewind functions.
3. Longitudinal movement (left and right) adopts a flat-type rail guide,hydraulic transmission and
artificial precision scraping which can achieve stable running.
4. Vertical movement of the grinding head is transmitted by precision shaped ball screw and driven
by servo motor which can ensure precision,accurate position,automatic feed and rapid up and down
function.
5. Adopting GSK system,two-axis CNC which can program freely according to the actual situation
and install Pulse hand wheel according to customer's requirement;
Technical parameter:

Model	Unit	MYK820	MYK1022	MYK1224
Table Size	mm	480×200	540×250	600×300
Travel of worktable	mm	530×220	560×260	600×300
T-Slot	mm	1×14	1×14	1×14
Distance from table to spindle	mm	450	450	450
Wheel size	mm	200×20×31.75	200×20×31.75	300×30×76.2
Spindle Speed	r/min	2850	2850	2850
Longitudinal speed of table	m/min	3-25	3-25	3-20
Cross feed amount of table	m/min	0.5-15	0.5-15	0.5-15
Vertical manual feed of head	mm	0.005-0.05	0.005-0.05	0.01-0.05
Rapid up and down speed	m/min	0-6	0-6	0-5
Spindle motor	kw	1.5	1.5	2.2
Coolant pump motor	W	40	40	40
Lift servo motor	kw	0.75	1.0	2.8
Front and rear servo motor	kw	0.75	1.0	2.8
Hydraulic motor	Kw	1.5	1.5	1.5
Working pressure	MPa	3	3	3
Tank capacity	L	80	80	80
Maximum flow rate	L/min	18	18	18
The parallelism of working surface	mm	300:0.005	300:0.005	300:0.005
Surface roughness	μm	Ra0.32	Ra0.32	Ra0.32
Net/Gross weight	kg	900/1000	1000/1150	1500/1650
Magnetic chuck size	mm	400x200	500x250	600×300
Overall dimension(L×W×H)	mm	1680x1140x1760	1680x1220x1720	2350x1650x1800
Package dimension(L×W×H)	mm	1630x1170x1940	1630x1290x1940	2300x1700x2050

Standard accessories:
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical
Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best
price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
