Tablet Android 10 Home Automation Control Panel Smart Touch Tablet Poe RJ45 RS485 Meeting Room Tablet Wall Mount

Product Description

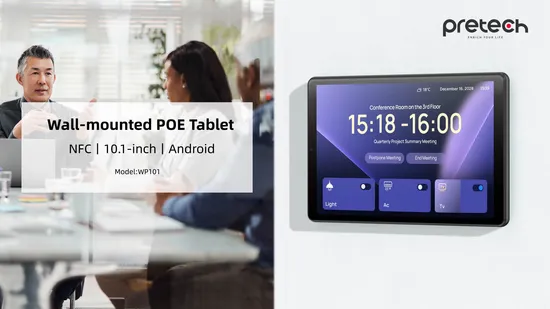

Product Overview New OEM/ODM 10.1 inch POE Power Android Wall Mounted Touch Screen Tablet PC
Key Features:
-Support Three Charging Methods:
* 5V USB Type-C + support OTG data transfer
* 48V RJ45 (POE) + ethernet connection
* 12V RJ12+ RS485 communications
-Wall Mounted Solution: recessed outlet box
-Sensor: 500mm proximity distance sensor & temp-humidity sensor -Wireless: front nfc, zigbee/thread optional -Microphone: good frequency response and high sensitivity with echo cancellation for IP call
-Case: aluminum alloy molded injection molding, shot blasting, fireproof plastic case with metal middle frame, water repellency design
-Low Current Consumption & Good Heat Dissipation Solution: operate and charge for a long time (24hr/365 days) without regular reset
-The Back Light Dimming Level: can be adjusted by app from completely dark to full brightness
-App will automatically be launched after power up

Processor MTK8768, octa core Cortex-A53 x2.0GHz,12nm	Operating System Android 14 Support software debugging	Display Screen: 10.1 inch TFT LCD IPS Resolution: 1200*1920 FHD
Memory 4GB LPDDR4+64GB eMMC	Speaker Box speakers 8Ω/1.0W*2	Wireless IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz Bluetooth 5.0 Zigbee/Thread/NFC Optional
Power Supply No Battery Type-C (5V2A) POE (12.5W 48~53V) RJ12(12~24V 1.5A)	I/O Ports RJ45 (POE) RJ12 (RS485) USB (Type-C) Button (power,vol-)	Mechanical 243 x 152 x 10mm Metal housing Wall mounted supported

Product Parameters

Specification
Chipset & Platform
CPU	MTK8768,8 core,Cortex-A53,2.0GHz,12nm
GPU	IMG GE8320
NPU	/
RAM	4GB LPDDR4
ROM	64GB eMMC
OS	Android 14
Display
Screen	10.1 inch TFT LCD IPS
Resolution	1200*1920 FHD
Brightness	250cd/m2
Contrast Ratio	1000:1
View Angle	85
Touch Panel	Capacitive 5 point multi-touch screen,G+FF full lamination
Wireless
WiFi	IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz
Bluetooth	Bluetooth 5.0
NFC	Yes
Zigbee	Optional
Camera & Speaker & Mic
Front	5.0MP (optional)
Rear	/
Speaker	Box speakers 8Ω/1.0W*2
Mic	Built-in*1
I/O ports
USB	1*USB-C(data&OTG),5V 3A
RS485	1*RJ12,12~24V 1.5A
RJ45	1*100M,PoE(12.5W)
Buttons	power,vol-,vol+
Power supply
Battery	/
TYPE-C	5V3A
POE	12.5W 48~53V
RJ12	12~24V 1.5A
Functions
Accelerometer(G-sensor)	Accelerometer(G-sensor)
Gyroscope	Optional
Light sensor	Optional
Proximity sensor	Optional
Humiture sensor	Optional
Mechanical
Dimensions	243 x 152 x 10mm
Weight	TBD
Mount	Wall mount supported
Housing materials	Metal
Environment
Operationg temperature	-10 to 60
Storage temperature	-20 to 70
Accessories
In the Box	Manual,warranty card
Certifications
Optional	CE,FCC,RoHS,KC...

Packaging & Shipping
Our Services
OEM Services: a. Print Logo on Back Case(Plastic/Metal), Touch Panel(with MOQ 3000PCS) and Accessories(Giftbox/User manual/ Warranty card/Charger/Leather case) etc b. Support free Artworks customization c. Support free Software customization(Including Startscreen/Wallpaper/System information/Pre-insall Apps etc) ODM Services: We offer ODM solutions for certain customers who have specific needs which can't be satisfied by existing devices in the market. we can provide : a. ID/MD/PCB/Accessories/Package design b. Software customization/debugging/provide SDK or source code And Now our ODM services has covered more than 10 different application fields, such as : a. Smart home IOT projects, with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount...etc function b. Smart Kitchen Appliance, such as coffee maker, toaster, tea milk vending machine c. Smart healthcare products for hospitals & patients & seniors d. OBD & Navigation & car hearest display Device for Vehicle e. Smart Payment Terminal Device f. Education projects*Smart gym solution After-sale Service: a. 1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or replacement from us. b. If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch panel/Battery etc) c. For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to train d. Technical assistance for whole life
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service. Our smart panels feature a variety of functions such as 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, AI acceleration etc... providing excellent HMI(human-machine interface) experience. These features are tailored for various industries, such as: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more... Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, also including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedbacks
FAQ
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook? A1:Yes, we can custom ID and MD design with your reference and using scenario description. Q2: Do you support the product software(SW) development? A2: Normally we do system and driver level development, Application-level development will be done by Client or 3rd party software(SW) developer assigned by clients. Q3: Which OS can you support development? A3:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS. Q4: Can you support to remove the battery from tablet PC? A4:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device. Q5: Can you support SDK service? A5: Yes, we can support SDK (software kit development) service for customers. Q6: Do you have any experience with educational projects? A6: Yes,we have rich experience with quite a lot educational cases. a. 7inch wifi version PND for European big map dealer. b. Windows 10.1inch OBD without battery/back cover for American 4s auto repair shop c. 8inch T618 4g octa core tablet with high temperature compatible battery for Australia map dealer. d. 10.1inch android headrest entertainment tablet pc with explosion-proof touch screen. etc.countless cases
Q7: Can you support customization of accessories for smart devices? A7:Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device. Q8: Can you provide prototype samples? A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be able to come back to you with the best proposed solution asap. Q9: What's the normal ODM product development time? A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap. Q10: How is the ODM device development cost calculated? A10: Development charge is in 2 parts: a. Tooling design; b. PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap. Q11: Can we sign NDA? A11: Yes, we can sign NDA. Q12 How to deal with the intellectual property? A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech. Q13: What's your after-sales service for ODM smart device ? Can you support two year's or more warranty? A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
