Mobile DVR Mxvr1004-Gfwi 4CH 3G WiFi GPS User Manual 1080P Full HD Vehicle Blackbox DVR Mdvr

Product Description

Mobile DVR MXVR1004-GFWI 4CH 3G WIFI GPS User Manual 1080P Full HD Vehicle Blackbox DVR MDVR

Product Parameters

4 Channels H.265 Penta-brid AI Mobile Video Recorder
> Supports 4-ch 2MP analog cameras and 1-ch 2MP IP camera input
> Supports H.265/smart H.265 video compression
> Supports 2 SD cards (up to 256 GB for each)
> Supports DSM/ADAS/BSD
> Multiple network monitoring: Web viewer, Mobile Center & DMSS

System

Main Processor

High-performance industrial embedded micro-controller

Operation System

Embedded LINUX

Operation Interface

WEB, AV

Video and Audio

Analog Camera Input

4 HDCVI/AHD/TVI/CVBS cameras, up to 1080P resolution (Audio input is not supported when connecting AHD/TVI/CVBS cameras)

IP Camera Input

1 IP camera, up to 1080P resolution

Encoding Capacity

1080P/720P/960H/D1/CIF

Dual-stream

Supported (up to D1 encoding for sub stream)

Video Frame Rate

PAL: 1 - 25 fps NTSC: 1 - 30 fps

Video Output

AV OUT×1 Output resolution: 800×600

Display Split

1/4/6

OSD Overlay

Channel, time, GPS position, license plate

Image Quality Adjustment

Image quality adjustable across six levels

Compression Standard

Video Compression

H.265, smart H.265, H.264, smart H.264

Audio Compression

G.711A/G.711U/PCM

Network

Mobile Phone Access

iOS, Android

WiFi

Supports built-in 2.4 G Wi-Fi modules.

Browser

Google, PCAPP, IE9 or newer, Firefox

AI

ADAS

Alerts for forward collision, lane departure and vehicles distance too close.

DSM

Supports detection of drowsy driving, distracted driving, calling while driving, no driver, wearing IR blocking sunglasses, smoking when driving and lens tampering.

BSD

Blind Spot Detection

Update

Device Update

WEB, USB, remote platform, upgrade tool

Recording Playback

Record Mode

Auto, Manual, motion detection, schedule, alarm Record alarm > alarm > motion detection > schedule

Recording Playback

1, 4

Backup

HDD, USB flash drive and network backup

Playback Mode

Normal playback

Storage

SD card

2 (256G)

Alarm

General Alarm

Motion detection, video tampering and loss, local alarm, camera offline, manual alarm control, DSM, ADAS and BSD alarm

Anomaly Alarm

No HDD, HDD error, insufficient capacity, illegal login, ACC off, high temperature, rollover, battery low voltage, over speed, low speed, collision, tapid turn, rapid speedup, hard braking, low battery safety exception, network security exception

Alarm Linkage

Record, snapshot, local external alarm output, buzzer, log, screen prompt, tour

Sensor

Gyroscope

Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn.

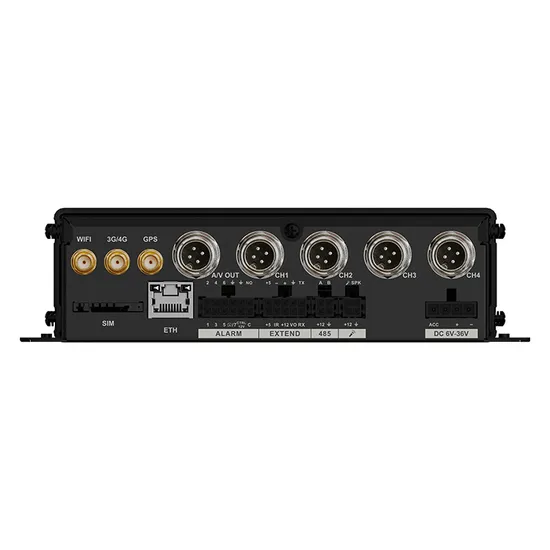

External Port

TV Output

1

Audio Input

4 channels PoE audio input

Audio Output

1 aviation port for audio output 1 audio talk output

Two-way Talk

Supported

Alarm Input

6 channels for alarm input, 1 channel for pulse speed measuring

Alarm Output

1 channel of controllable 12V alarm output, digital quantity

RS-232

1

RS-485

1

USB

Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 from EXTEND port

Pulse Count

1

Satellite Positioning

GPS/GLONASS

Network Port

1 × 10M/100M RJ45 (rear panel)

General

Power Supply

DC 6-36V with the built-in UPS (Enables system protection in normal power cut-off and in under-voltage of vehicle battery.)

Power Consumption

6.7W (without peripheral ) Low power consumption: < 0.1W

Gross Weight

2.83 KG (6.24 lb) (with packages)

Product Dimensions

138 mm × 160 mm × 49 mm (5.4' × 6.3' × 2.0') (L × W × H)

Packaging Dimensions

308 mm × 293 mm × 123 mm (12.1'×11.5'×4.8') (L × W × H)

Operating Temperature

-30 °C to +70°C (-22 °F to +158 °F)

Operating Humidity

10% - 90%

Operating Altitude

5000 m

Installation

Bracket

Certifications

CE\FCC\EN50155\ISO7637-2\ISO16750\BIS
