Factory Price Automatic Sliding Gate Opener
| US$100.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TM-G11
Certification
CE
Mode
as Customers′ Request
Maximum Weight of Gate
700kg-800kg
Limit Switch
Spring Limit Switch/Magnetic Limit Switch
Gate Moving Speed
12m/Min
Gear Box Material
Aluminum Alloy
Transport Package
Carton
Specification
as clients′ request
Trademark
TOMA
Origin
Shanghai, China
HS Code
853080000
Production Capacity
30000sets/Year
Product Description
TOP QUALITY SLIDING GATE OPENER SERIES:1. Gate opener

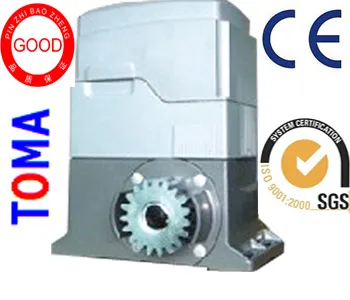

SLIDING GATE OPENER
Full Set ( one motor, 1 control box, 2 transmitters, mounting accessories) With built in receiver
TM-G18R
Power Supply: AC 230V, 370W
Outputtorque: 18Nm
Maximun weight of Gate: 500KG
Limit switch: Spring limit switch/magnetic limit switch,
Gear Box material: Aluminum alloy
Control board: Rolling code, 433.92MHZ
TM-G19R
Power Supply: AC 230V, 370W
Outputtorque: 18Nm
Maximun weight of Gate: 700-800KG
Limit switch: Spring limit switch/magnetic limit switch,
Gear Box material: Aluminum alloy
Control board: Rolling code, 433.92MHZ
TM-G20R
Power Supply: AC 230V, 550W
Outputtorque: 21Nm
Maximun weight of Gate: 1000-1200KG
Limit switch: Spring limit switch/magnetic limit switch,
Gear Box material: Aluminum alloy
Control board: Rolling code, 433.92MHZ
TM-G22R
Power Supply: AC230V, 750W
Outputtorque: 35Nm
Maximun weight of Gate: 1500-2000KG
Limit switch: Spring limit switch/magnetic limit switch,
Gear Box material: Aluminum alloy
Control board: Rolling code, 433.92MHZ
TM-24R
Power Supply: AC 230V/120V, 900W
Horse power: 3/4
Outputtorque: 45N· M
Maximun weight of Gate: 2500-2800KG
Motor Speed: 1400r/minGate
Moving speed: 12m/min
Limit switch: Spring limit switch/magnetic limit switch, Noise: ≤ 56dB
Environmental temperature: -35º C- +65º C
Gear Box material: Aluminum alloy
Control board: Rolling code, 433.92MHZ
TM-ET-DC
Full set(1 motor with builting receiver, 2 transmitters, mounting accessories, 1 photocell TMPC1, 1 flash lamp)
Power supply: 220V, 50HZ/110V, 60HZ Motor power: 24VDC/60W Motor rotational speed: 2200r/m, Reduced ratio: 60: 1, Max gate weight: 400kg
TM-VI-DC
With builting receiver, Motor power: DC24V
Motor rotational speed: 1800 r/min, Output rotational speed: 42 r/min
Max gate weight: 600kg, Gear Box material: Aluminum alloy Built in control panel. Wall switch, photocell, flash lamp. Auto-closing is available, time delay is adjustable. 24VDC back-upbattery can be input. Soft start.
