Agricultural Machinery Forage Harvester Green Feed Harvesting Equipment for Sale
| US$5,000.00-6,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
4QX-1700
Application
Corn, Straw, Forage
Power Source
Tractor
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Backpack Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Machine Weight
1300kg
Matched Power
73.5-95.6kw
Working Width
1700mm
Linkage Type
Trailed
Cutting Table Type
Disc
Cutting Type
Blade
Cutting Speed
4-7km/H
Cutting Rotor Dia.
890mm
Mainshaft Speed
850-1000 R/Min
Thrower Height
4300mm
Minimum Ground Distance
445mm
Thrower Rotation Angle
+-180
Transport Package
Pallet
Specification
4740*1810*4790mm
Trademark
DENON
Origin
Dezhou, Shandong, China
HS Code
8436800001
Production Capacity
1000 Sets Per Month
Product Description

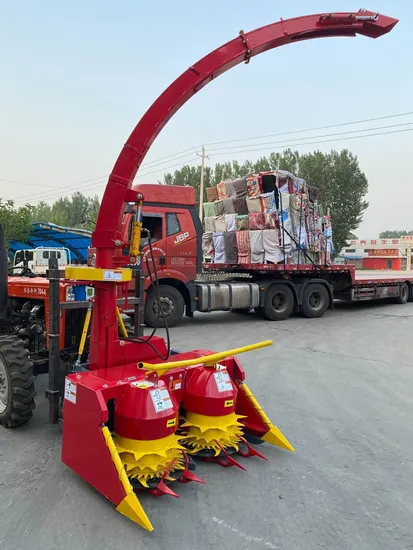

Agricultural Machinery Forage Harvester Green Feed Harvesting Equipment for SaleOur forage harvester is manily used for harvest and chop green forage like corn stalk, napier grass, cotton stalk, pasture and reed and so on. Our forage harvester have function of collecting, chopping, kneading and blowing. After harvesting, the length of the forage can be from 1-3 cm which you can adjustable.
Specification:
| Item No. | 4QX-1400 | 4QX-1700 | 4QX-2300 | 4QX-2600 |
| Working Width | 1400mm | 1700mm | 2300mm | 2600mm |
| Machine Size | 3800*1485*3980mm | 4740*1810*4790mm | 4870*2460*4790mm | 4450*2750*2500mm |
| Machine Weight | 1150kg | 1300kg | 1600kg | 1750kg |
| Matched Power | 40-50kw | 73.5-95.6kw | 102-117kw | 117-132kw |
| Linkage Type | Trailed | Trailed | Trailed | Trailed |
| Cutting Table Type | Disc | Disc | Disc | Disc |
| Cutting Type | Blade | Blade | Blade | Blade |
| Cutting Speed | 4-7km/h | 4-7km/h | 4-7km/h | 4-7km/h |
| Cutting Rotor Dia. | 890mm | 890mm | 890mm | 890mm |
| Mainshaft Speed | 750-1000 r/min | 850-1000 r/min | 850-1000 r/min | 1000 r/min |
| Thrower Height | 4300mm | 4300mm | 4300mm | 4300mm |
| Minimum Ground Distance | 445mm | 445mm | 445mm | 445mm |
| Thrower Rotation Angle | +-180 | +-180 | +-180 | +-180 |
Advantages:
1. Bilateral independent transmission, keep the structure symmetry ;
2. Fan (blower), blender and double speed double shaft, which can avoid blocking ;
3. Wind leaf, local use of carbon fiber material to improve strength
4. Wear-resisting blades, to extend service life
5. With hydraulic motor,the outlet can be adjusted to any direction in need of transport.
Our Company:
Shandong Denong Agricultural Machinery Manufacturing Co. Ltd. , occupies an area of more than 120 acres in Ningjin County on the Northwest Plain of Shandong Province in China. We are an enterprise integrating R&D, manufacture and sales of agricultural machinery products. With 30 years of machining history, our company now have more than 600 employees while 70% are professional and
technical personnel and 10% are managers. Owning a fixed assets of 60 million Yuan, 8 production assembly lines, more than 350 sets
of equipment, and a complete comprehensive quality management system, our annual production capacity now is ≥100,000 sets, and production & sales are increasing year after year.
If you need any agricultural machinery, please feel free to contact us.
