Plate Reader Platedirect A96-Microplate Reader

Product Description

Product Description
Compact

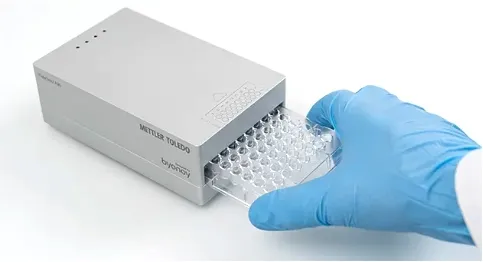

Introducing the PlateDirect A96, a marvel of modern lab technology that boasts a footprint just slightly larger than a standard 96-well plate. This makes it an unparalleled solution for laboratories striving to maximize efficiency without compromising on space, blending seamlessly into any workspace while delivering exceptional performance.
Portable
This innovative portable device revolutionizes the way samples are measured, offering the ultimate convenience of assessing samples anytime, anywhere, while easily sharing results across multiple labs. Simply connect the device to your local PC to begin measuring, ensuring unmatched flexibility and efficiency for your research needs.
Ease of Use
Experience the future of lab operations with the Absorbance 96 App, which brings intuitive operation to your PC interface. This state-of-the-art software provides your laboratory with an effortless, user-friendly experience, ensuring that device operation remains smooth and straightforward.
Plate Reader PlateDirect A96 Var. 3

Weight	0.9 kg
Languages	Chinese English German
Dimensions (HxWxD)	55 mm x 154 mm x 96 mm
PC Software	Absorbance 96
Measurement Technique	Endpoint and kinetic
Microplate Types	96-well, flat bottom
Humidity Range	Max. 70 %
Light Source	4 LEDs, individual wavelength configurable in the range 400 - 999 nm
Accuracy	405 nm: ≤ 1.5 % + 0.010, (0.0-2.0) ≤ 1.5 % + 0.010, (2.0-3.0) ≤ 3 % + 0.010, (2.0-3.0) ≥ 450 nm: ≤ 1 % + 0.010, (0.0-2.0)
Detector	96 Photodiodes
Power Requirements	USB 2/USB 3 with 5 VDC and max. 3 A
Reproducibility	≤ 0.5 % + 0.005, (0.0-2.0) ≤ 1 % + 0.010, (2.0-3.0)
Linearity	405 nm: ≤ 1.5 %, (0,0-2.0) ≤ 1.5 %, (2.0-3.0) ≤ 3 %, (2.0-3.0) ≥ 450 nm: ≤ 1 %, (0,0-2.0)
Measuring Method	Absorbance
System Requirements	Mac OS: High Sierra 10.13 or higher Windows 7 or higher
Storage temperature range	5 °C - 40 °C
Housing material	Aluminum
Measurement Range	0-4.0
Resolution	0.001
