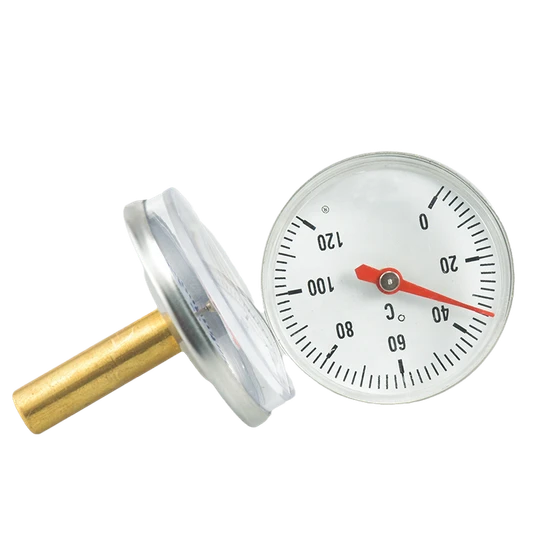

| Dial: | 1.5",2.5",3",4" |
| Case: | steel case |
| Lens: | Glass standard, Shatterproof Glass Len is Available |
| Bezel: | Chrome plated bezel, bayonet ring |
| Stem Diameter: | 6mm,8mm,10mm or others |
| Stem: | Copper alloy |
| Pointer: | Aluminum, painted black |
| Movement: | Bi-metallic coil |
| Connection: | 1/4" standard on 2" dial, fixed center back and bottom 1/2" standard on 3", 4"available, fixed center back, bottom and adjustable angle. |
| Accuracy: | +/-1.5% full scale standard |
| Other: | With calibration-reset screw or without |
