Raytek-Es185L CNC Edge Grinding Machine

Product Description

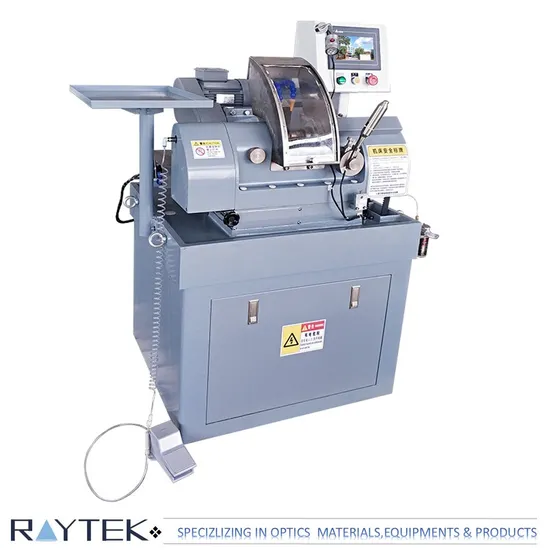

RAYTEK-ES185L CNC edge grinding machine
Significant features of ES185L CNC edge grinding machine
The headstock is fixed, driven by steps, and the grinding head frame adopts an XY guide rail structure. It is driven by servo, ball screw, and slider, and is equipped with an immersive guide rail; Adopting touch screen control, all parameters can be digitally set and controlled, and the process adopts multi-stage precise control for edge grinding; A taper fine-tuning mechanism has been added to the mechanical structure to facilitate the resolution of product taper issues during operation; Optional digital chamfering assistance system can solve the problem of inconsistent chamfer dimensions caused by product thickness differences, and can also be used for monitoring centrifugal centering; Servo digital control can greatly extend the service life of grinding wheels, and this machine is suitable for processing optical lens.

Servo control, stable accuracy	Integrated handle, easy to operate	Back mounted motor to reduce vibration	Fine adjustment of taper and escort quality

Application field:
Lens products processed by ES185L optical edge grinding machine, which can be widely used in industries such as chemical, military, aerospace, transportation, petroleum, light industry, medical, etc.

List of optional configurations or features
	Type	Name	Function
Option 1	XZ-1	Fixture corrector	Trim the chuck

Scientific parameters:

ITEM	Standard Specifications
No. of spindle	1 axis(1axis)
Lens diameter	φ50~φ185(Suggested thickness is less than 40mm)
Working time	10sec~User setting
Holder spindle thread specification	M20*1(Fixed end dextrorotation, active end left-hand rotation)
Holder spindle grinding speed	0-120rpm(Can be freely set)
Holder spindle centrifugal speed	100-300rpm(Can be freely set)
Holder spindle rotary motor	8N.m9(Stepper motor + gear reducer drive)
Fixture corrector	Optional
Auxiliary chamfering system	optional(The chamfer of glass with thickness deviation is consistent)
Dia wheel spindle speed	3500rpm
Dia wheel rotary motor	Y801-2 750w/380v/4p
Dia wheel moving motor	400W servo drive
Dia wheel moving precision	0.003mm
Dia wheel specification	φ160×30H7×30T(thick 8-30mm)
Dia wheel drive belt	Multi wedge band with 6 peaks PJ280
Cooling pump	90W/380v
Sand wheel shaft bearing	7005ACTN1P4DT
PLC	PLC
Touch screen	7-inch PLC
Linear slide rail	Brand ABBA,type:SHS15V2SSC
Contactor	Delixi
Machine size	840×760×1260mm
Machine weight	About 600KG

Main Export Countries & Areas:
USA UK, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina, Pakistan, India, Portugal, Canada, New Zealand, South Africa, UAE, Egypt, Norway, Netherland, Russia, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union or L/C
Delivery time: 7-10 days.
Quality Warranty: Shanghai Zrinting offers quality warranty for our lasers products with "3R" policy. For any inferior-quality products, Zprinting Company is responsible for return, replacement and refund.
For specific installation and operation, please refer to the product manual or contact customer service for operation tips or videos after receiving the product. The equipment is guaranteed for one year, and artificial or abnormal damage is not covered by the warranty. If it exceeds one year, a certain fee will be charged for the relevant after-sales service. This device will continue to be optimized and improved due to various factors. At that time, please pardon us not notify separately. Thank you for your support and understanding.
