Low Price Backhoe Pontoon Floating Wheel Excavators Hitachi Zx Bulldozer Crawler Excavator Nwe560V

Product Description

Product Description

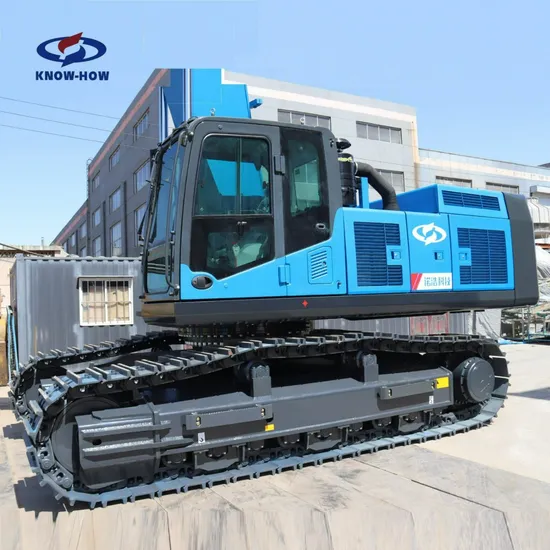

KNOW-HOW NWE560V heavey duty 5 years warrantee period dual 350kwh battery Permanent magnet synchronous motor Elelctric Crawler Hydraulic Excavator

Electric Excavator NWE560V Basic Parameter
Vehicle Spec.	Unit	NWE560V	Vehicle Spec.	Unit	NWE560V
Motor Type	/	Permanent magnet synchronous motor	F-Ground Cleance	mm	720
Vehicle Weight	KG	52500	G-Rear Tail Turning Radius	mm	4440
Bucket Capacity	m³	2.8	H-Crawler on ground length	mm	4360
Motor Type No.	/	YQW3-225D-17K-RA2	J-Crawler Total Length	mm	5390
Rated Power	Kw/R/Min	280/1850	K-Rail Distance	mm	2740
Battery Capacity	Kwh	350*2	L-Crawler Width	mm	3340
Rated Voltage	V	576	M-Crawler Plate Width	mm	600
Walk Speed	km/h	3.0/4.8	N-Cabin Height	mm	3316
Turning Circle Speed	r/min	8.6	O-Max Digging Height	mm	10000
Max Gradeability	Degree	70	P-Max Dump Height	mm	6760
Bucket Digging Power	KN	298	Q-Max Digging Depth	mm	6260
Ground pressure	kPa	89	R-Max vertical Digging Depth	mm	5620
Hydraulic Pump type	/	V90N230DP	S-2.5m Digging Depth	mm	6070
Maximum discharge	L/min	414x2	T-Max Digging Distance	mm	10580
Bucket Rod length	mm	2550	U-Max.digging distance on ground	mm	10360
Swing Arm Length	mm	6560	V-Min Turn Radius	mm	4825
A-Total Length	mm	12190	W-Max. height at min. turn radius	mm	9250
B-Total Width	mm	3340	X-Distance rotation center to rear	mm	4437.5
C-Total Height(Swing Arm)	mm	4050/4122	Z-Counterweight Clearance	mm	2623
D-Total Height(Cabin)	mm	3280	A1-On Ground Length	mm	6520
E-Ground Clearance	mm	1300

Detailed Photos
Company Profile
Know-How Group founded in 1998 year,which is the times practitioner for creating mining enterprise ecological civilization construction and forging green mine one-stop solution.Know-How group subsidiary company includes New Energy Equipment R&D and Energy Supply service,Mining Industry Investment,Mining Equipment Maintenance,Mining Engineering etc.
Know-How brand has grown into a domestic new energy mine equipment leading brand.After many years of accumulation and precipitation,it has formed three R&D centers located in Tianjin,Shenyang and Shuozhou city,and Shuozhou new energy Equipment manufacturing base is more than 40000 square meters with more than 40 technical patents and intellectual property rights,its annual production capacity has reach up to more than 1000 sets new energy equipment.

Know-How Technology has gathered a group of mining equipment and new energy industry with more than 10 years,professional and experienced team,core members are from the domestic famous construction machinery,large mining enterprises.
Know-How Technology adheres to the cooperation concept of "One promise equal thousands golden,Vast sea embraces hundreds rivers",practices the strategic choice of "close to customers, service customers", and combining new energy equipment rich experience in the development and production is Know-How Technology development core advantage.

Know-How Technology has gathered a group of mining equipment and new energy industry with more than 10 years,professional and experienced team,core members are from the domestic famous construction machinery,large mining enterprises.
Know-How Technology adheres to the cooperation concept of "One promise equal thousands golden,Vast sea embraces hundreds rivers",practices the strategic choice of "close to customers, service customers", and combining new energy equipment rich experience in the development and production is Know-How Technology development core advantage.

Electric Energy Solution
With the introduction of the "14th Five-Year Development Plan for Construction Machinery Industry" by the state,which strengthen the product life cycle Periodic green management, speed up the green transformation and upgrading of construction machinery enterprises. As a result, mining enterprises are under great pressure on environmental protection and high cost of operation and maintenance,anxiety about the mileage range of new energy equipment,difficulty for the government to collect carbon emission data,mining machinery and carbon emission Regulatory pain points, etc.

Aiming at its pain points, Know-How Group has a strong, independent and one-stop new energy mining equipment solution capability Power, zero emissions, maintenance-free pure electric equipment can effectively solve the traditional mine construction machinery environmental protection pressure,High fuel cost and expensive maintenance problems.
At the same time, through independent research and development and in-depth cooperative development,Know-How has formed a service all scenario, full working conditions of energy supplement equipment, and making full use of Know-How cutting-edge new energy charging and swapping stations technology to promote market Layout, providing the 5-8 minute quick battery replacement solution, improving vehicle efficiency, and successfully solving new energy equipment mileage range anxiety issues.
Certifications
Project & Cooperation
FAQ
1. WHAT ARE YOUR STRENGTHS? (1)We have majored in the truck field more than 24 years,have strong ability to research and develop main parts in the truck according to customers customized requirements,such as battery capacity,endurance mileage,gearbox function design etc,
(2)Our Construction Machinerys are much popular in North America,Mid-Europe,Mid-East,Southeast Asia,South America.
(3)Our Construction Machinerys are new energy electric power drive,Zero polution,Zero emission,totally fulfill local market Environmental Protection policy requirements.
(4)Actually,electric power drive could save more than 90% costing than fuel or diesel machinery.
(5)We have professional after-sale service teams which could solve your trouble in timely.
2. WHICH PAYMENT METHOD CAN YOU ACCEPT? L/C and T/T,else payment terms are also negotiable before make a deal.
3.WE WANT TO CUSTOMIZED SOME PARTS ON TRUCK TO MATCH OUR WORK SCENE,SUCH AS TIRE,POWER,AND LOADING WEIGHT. It is total no problems,that is just right our strength,we could fulfill different customers customized requirements.Actually,there are some spare parts are optional.
4.WE WANT IMPORT PRODUCTS IN CKD OR SKD, IS THAT OK? This question is also no problem,we could support CKD or SKD base on different condition claims.
5.WHAT LOGISTICS WAYS YOU CAN WORK FOR SHIPMENT? We could ship the equipment by various transportation tools, (1) Our main shipment methods are by container or bulk shipment. (2) For Inland neighborhood countries arround China,we could send machinery by road or railway. (3) For spare parts or easy broke parts,we could send by globle express,such as UPS,DHL,TNT or Fedex.
6.WHAT IS YOUR AFTER-SALES TERMS?
(1) One-year quality guarantee or within 10000kms,6 months battery.
(2) Other spare parts could be supplied by OEM at cost prices.
(3) Provide spare parts for the easy-to-break parts.
(4) The overseas engineers will come change spare parts and maintenance.
