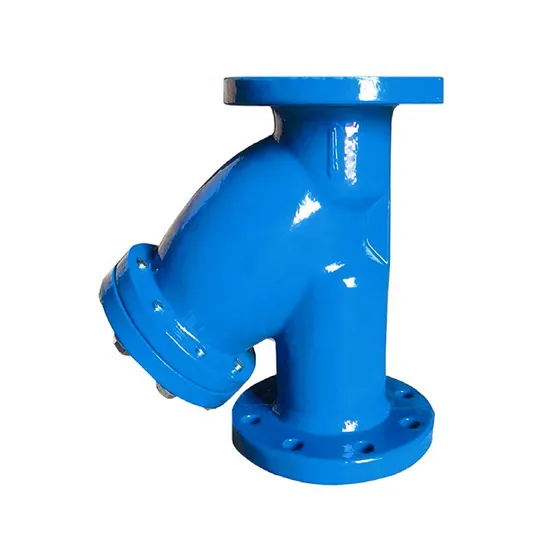

DIN3202 Pn16 Ductile Iron Y Filter Strainer Factory
Basic Info.
Material
Cast Iron
Connection Form
Flange
Structure
Check
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Surface Treatment
Epoxy Coating with Thickness ≥ 250μm
Pressure Rating
Pn10,Pn16
Color
Blue
Transport Package
Wooden Cases
Specification
DN40-DN1200mm
Trademark
TIANYI SUNS
Origin
China
Production Capacity
10000 Piece/ Month
Product Description
DIN3202 PN16 Ductile Iron Y Filter Strainer Factory Product Description Y Strainer is device for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. It is used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.TECHNICAL SPECIFICATIONS
PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI
Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40)
Applicable medium: water, oil, gas
Applicable temperature: -10~+80ºC
STANDARDS
Design & manufacturing: ASME B16.34
Face to face: GB/12221, ANSI B16.10, EN 558-1
Flanged ends: GB/T17241.6, ANSI B16.1/5, EN 1092, JIS10K, AS 2129
Inspection & testing: API598, GB13927
FEATURES
Main parts of all kinds of pumps, valves in the pipeline
Mainly used to filter dirt, rust and other debris.
| No. | Part name | Material | Standard |
| 1 | Body | Ductile Iron | ASTM A536 |
| 2 | Screen | Stainless Steel | ASTM A370 |
| 3 | Seating | Rubber | |
| 4 | Bonnet | Ductile Iron | ASTM A536 |
| 5 | Bolt | Stainless Steel | ASTM A370 |
