Maize Corn Harvester Professional Design for Brazil Agricultural Equipment Market

Product Description

Product Description
4YZ-5C 4YZ-5AC corn harvester

Item	Unit	4YZ-5C/5AC
power	kw/hp	161.5/220
rows	/	5
row spaceing	mm	450-490 or 530-570
over size	mm	7900×2950×3650
type peeling	/	5 group
max unloading height	mm	2900
drive type	/	hydraulic
tire	/	75-15.3/15-24

Product Parameters
1,Famous engine: Equipped with famous 200hp 4 cylinder or 220 horsepower six -cylinder engines, low fuel consumption, stable operation, sufficient power reserves, and guaranteed service.
2,Reliable Chassis: Equipped with 1000 series four-speed gearbox, stable and reliable performance: international well-known brand hydraulic pumps and motors are used, hydraulic pumps and motors displacement increased, and the power is stronger; one-lever control, more comfortable operation, fast response, time-saving and labor-saving, and better adapt to field operations under various working conditions:
3,Double auger grain recovery: The double auger grain recovery device is adopted, which has higher reliability and cleaner grain recovery; the design of mixed blower is added, and the grain is cleaner. The sliding cutting knife roller shreds corn husks and returns them more evenly in the field.

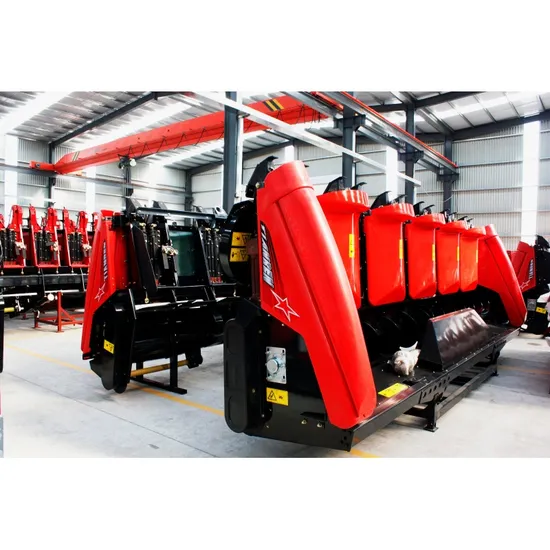

4,Tianren corn head: The unique twin row 540-505corn header, forced feeding mechanism added, better adaptability of row spacing;small ground clearance, picking ear smoothly without grain loss, no corn ear cutting, low failure rate, fast harvesting speed, high efficiency. Good harvesting effect of lodging com.
5,Independently developed peeling machine: The independently developed five-group roller peeling machine has a high peeling rate, less damage, and key parts ad maintenance-free bearings with reliable and stable quality. The finger wheel adjustment of the peeling machine has been upgraded from screw adjustment to dual-handle adjustment, convenient and quick, greatly shortening the adjustment time;
6,Bigger grain tank: Bigger grain tank design, increase the volume from 3.5m3 to 5m2, reduce the times of unloading grain, optional treadmill on grain tank, which can load com in the grain tank, the unloading fulcrum of the grain tank is as high as 3 meters, and unloading grain is more convenient
7,Bigger guidance tires: The guide tires are increased to (16.00/70-20)series tires. The tires are widened and enlarged, and the load-carrying capacity is better. Reinforced frame design, stronger and thicker swing, better reliability and stability
8,Add multiple cameras: Added four cameras for peeling machine, grain recovery, engine, and ear box, so that the driver can keep track of the running status of the running status of the vehicle time, and the key parts can be visualized to ensure the normal and stable operation of the whole machine;
9,Hydrostatic drive(4WD optional): hydraulic front drive(HPT hydrostatic), convenient and flexible, low failure rate, quick response and time-saving, transition (0-26) working two-speed mode (0-13kmh)
10,One-lever control: The new wave pressure "one-lever" control saves time and effort, and reduces operator fatigue; the integrated control operation of hydraulic components convenient and comfortable
11,Brand-new frame design: optimized design of frame structure, high-strength automobile frame steel is used for the main beam and load-bearing frame components, which improves the bearing capacity and anti-torsion ability
12,Luxury cab: Suspension seat, adjustable steering wheel, and auxiliary seats are equipped to improve the safety and comfort of the passengers.
Company Profile
Tianren is located in Gaocheng District Hebei Province in China.It is a modern agricultural machinery enterprise integrating research and development, manufacturing, sales, and service.
Its main products include TR series 3-8 rows self-propelled corn combine harvesters and TR series 3-16 row corn headers,which can match domestic or foreign large scale combine harvesters,and meet the needs of different areas customers.
In 2004 the company cooperated with Tsinghua University to develop the TR series corn header,which has a domestic market share of over 85%.
In 2006 the company launched the TR9988 series self-propelled corn combine harvester.After years of research and development,this series of harvester have evolved into the currently available 4YZ-4,4YZ-5,4YZ-6,4YZ-7 corn harvesters.
In 2010 the company launched the first chopping corn header in the domestic market,achieving great success.
In 2015 the company participated in the formulation of the National Standard for Corn Header in the People's Republic of China and launched a sunflower header in the same year.
In 2016 the company launched a disc-type silage harvester and developed a corn harvester that could harvest both stalks and corn ears.
In 2017 after 4 years of research,the third generation of maintenance-free corn header and sorghum header was officially launched to the market.
In 2022 the fourth generation corn head and large crawler-type fresh corn harvester were introduced to the market.
Our Advantages

Production equipment
Our company owns two production areas for self-propelled corn harvesters and corn header, equipped with various professional production and testing equipment, including DaZu Laser, Tongkuai Laser, robot welding, bending machines, automatic feeding production lines, welding production lines, painting production lines, and assembly lines. We also have high-end devices such as magnetic particle flaw detectors, hardness testers, high-precision gearbox leakage detectors, torque test benches, air tightness testers, and box running-in test benches, as well as rich professional testing methods, to ensure the stability of the quality of each component and the reliability of the products in use.
After Sales Service
Quality and after-sale service
We have fully functional testing equipment and comprehensive testing methods to ensure that each component meets technical requirements and provide reliable products for our customers.
We provide online and offline services to solve problems encountered by customers during use in a timely manner.
Certifications
As a professional manufacturer of corn harvesting equipment, after nearly 20 years of development, the company has more than 40 patented technologies passed ISO quality management system certification,and obtained CE qualification certificate.Its products
have excellent and reliable performance, and can also be customized according to different customer requirements, which are highly praised by customers
