Qt10-15automatic Brick Making Machine Concrete Brick Machine Paving Brick Machine

Product Description

Detailed Photos

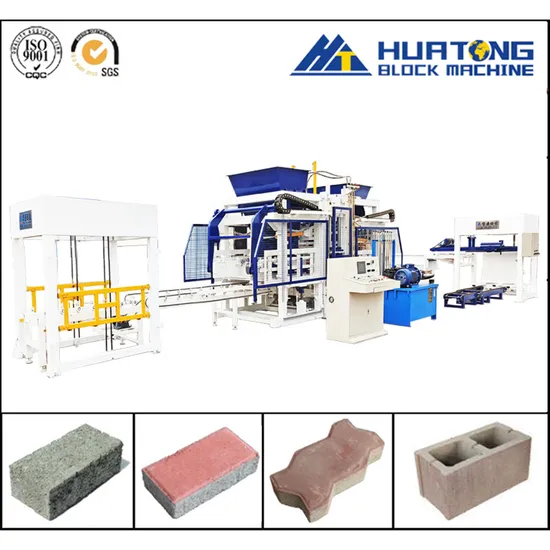

QT10-15Automatic Block Making Machine

Technicial Parameters of QT10-15Block Making Machine
Dimension	5400x2050x3050	Weight	17000KGS
Pallet Size	1150x950mm	Performance Standard	JC/T920-2011
Mode of Vibration	Table Vibration	Vibration Frequency	4200r/min
Vibration Force	90kn	Cycle Time	15-25Sec.
Hydraulic Motor	18.5kw-4P	Vibration Motor	7.5kw-2P x2
Concrete Feeder Motor	4kw-23-4P	Belt Conveyor Motor	2.2kw-43-4P
Wet Block Conveyor Motor	1.5KW-35-4P	Mobile Stacker Motor	1.5KW x2
Total Power	44.2KW

Production Capacity of QT10-15Block Making Machine
Block Type	Size(L x W x H)	Picture	Pieces/Pallet	Pieces/8Hours
Hollow Block	400x200x200mm		10	15000
Hollow Block	400x150x200mm		12	18000
Hollow Block	400x100x200mm		18	27000
Stock Brick	220x105x70mm		39	58500
Hourdi Block	530x160x195mm		6	8640
Holland Paving Block	200x100x60mm		35	52500
S- Paving Block	225x112.5x60mm		24	36000

Features of QT10-15Automatic Block Making Machine

1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Gear and shaft balance system can make male and female mould move stably.Concrete feeding is revolving,convective and compulsive to ensure block density and reduce feeding cycle. Feeder moving is two curved arms drived by two cylinders,which makes feeder move quickly,durably,and steady.

2.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.

3.The Hydraulic System adopts Proportion Direction Valve.The Valve can adjust flow rate and buffer cylinder during the process of production.Therefore,it can protect cylinder and extend life,and Improve the speed and flexibility of each part.

4.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.

5.Adopting International Advanced Microcomputer Control Technology to make Machine and electrical equipment to be one part.The plant can work automatically and cyclically.Our technicians put fault diagnosis,problem alarming into computer by safty logic control.The screen will timely and accurately show fault and methods to client if the machine is in error.

Working Site Picture of QT10-15 Automatic Block Making Machine

Certifications
Company Profile
Shandong Huatong Hydraulic Pressure Machinery Co., Ltd is one of the best Concrete Block Machine and concrete mixing plant in China which founded in 2004. Now we have sold machines to more than 65 countries such as Russia, North Korea, Malaysia, Vietnam, Egypt, Panama, Zambia, Sudan, Uganda, South Africa and so on...Our company covers 45000 square meters. There are 400 skilled workers, 12 engineers, 45 technicians. And huatong has 12 workshops which are used for steel cutting, welding, machining, assebling and so on. Our company is certificated enterprise by ISO9001. All machines must be inspected by the quality control department to ensure the quality. Huatong has R & D department and production workshop, specializing in machinery research and development work. The models of our concrete block machine are QT4-15 Semi-automatic Block Making Machine, QT5-15Semi-automatic Block Making Machine, QT5-15Automatic Block Making Machine, QT8-15Automatic Block Making Machine, QT10-15Automatic Block Making Machine. Meanwhile the models of our concrete mixing plant is HZS25, HZS35, HZS50, HZS60, HZS90 and HZS100.Our company has won many honours such as The Best Ten Brands of Block Making Machinery in China, Chinese Qualified Products, Member of China Construction Association, Advanced Technology of Mould Making from Shandong Scientific Center and so on.
FAQ
Frequent Asked Questions
1.What is the Raw Material of Block Making Machine of our company?
Our Equipment is Concrete Block Making Machine.The Raw Materials of Concrete are Water, Cement, Sand, Stone Powder, Fly Ash, Slag etc..
2.Which one of Block Making Machines is more suitable for me?
The Models of our Block Making Machine are QT10-15,QT8-15,QT7-15,QT5-15,QT4-15,each model has different Configuration.Our company also owns QTM4-40 Concrete Block Making Machine and QTM5-40 Mobile Concrete Block Making Machine.Which one of machines is right for me?The following questions should be carefully considered by yourself.Firstly,what Block Size do you want make?How many Blocks do you want make per day?What is your budget for this block machine project?How much land do you have?We can choose the suitable model and configuration for you if above information can be provided.
3.How could we buy machine from China Huatong Block Machine?
Our company will sign Sales Contract or Proforma Invoice with you by Email,Fax or Mail after confirming the Equipment that you want to buy;Our company will arrange Equipment and Mould Production after receiving your 30% deposit.The balance should be paid when the production is finished.Then we will arrange delivery to your closest Sea Port where you can take over the Equipment.
4.How could we take over the Equipment?
At present our customers come across more than sixty Countries around the world.They are using our machine,but most of our machine spread in Africa,Middle East,Southeast Asia, Eastern Europe and South America.We will book the Container from the Ship Company when the production is finished.Then the truck will take the Container to our factory for loading,be back to port after finish loading.The Ship Company will transport the Container to designated port where the customers can take over the machine.We also can be responsible for transporting the Equipment to Inland City,but according to our previous experiences,it will be saving transport costs if customers can cover the Inland Transport by yourself.
5.Can we produce various sizes and shapes of Blocks?
Our machine can produce various sizes and shapes of Blocks by changing different Mould.Some of Moulds are available in our company.The Moulds also can be customized by customer's block sizes and shapes.Or we can design the relative Mould based on your block size,picture or drawing.Normally one Mould can produce one kind of Blocks.
6.What should we do if machine do not work any more?
We will send technicians for guiding Installation, Commissioning,Trial Production while training the technicians of customer after the equipments arrived at the site;Normally our equipments do not have big problem.The Technicians of customer can take care of it with our help if any problem occur.We usually recommend customers to purchase part of Spare Parts as backup.Our company has more than Thirty years experiences for producing Block Making Machine with stable and reliable Equipment Quality.
7.What is power of Block Making Machine?
All our Block Making Machine are drove by Electric Power, presently there is no diesel-powered equipment.We do recommend that customers purchase generators as backup power if the place of customer is Electric Power Shortage.
8.What is the cost of purchasing equipment by customer?
Customers need to pay local port costs and import duties except for paying for our equipment and sea freight.The duty will not exceed 18% in most of countries for this equipment as far as we know.
9.What is the strength of Blocks made by our company.
Our Block Making Machines adopt international most advanced Moulding Way that is Hydraulic Pressure with Vibration.The Block Quality is higher than blocks made by simple vibration and gravity molded.Take Chinese Standard Solid Bricks 240x115x53mm for example, the brick strength can be reached 15Mpa, for Hollow Block 390x190x190mm can reach 7.5Mpa and pavers 200x100x60mm can reach 50Mpa .The Quality Requirements of all the countries can be reached.
