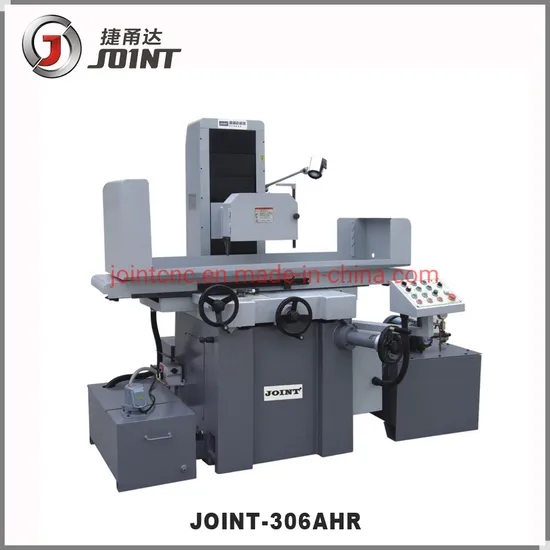

Automatic Grinding Finishing Machine for Metalworking Surface 306ahr

Product Description

Suitable for high precision manufacturing industry
1. Durable, high precision and high quality.
2. Imported high accuracy grinding head.
3. High quality resin, ageing treatment.
4. Taiwan high quality hydraulic system and high precision grinding head.
Specification

Model			306AHR
Table size		mm	600*300
X axis travel		mm	640
Y axis travel		mm	320
Table side way			Slide way
Max distance from spindle center to working table		mm	580
Auto corssward feed			0.1-8
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Vertical feed of hand wheel		1 Rev	2
		1 Div	0.01
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ355×(20-45)×Φ127
Spindle motor			5*4
Hydraulic motor			2*4
Crossward driven motor			0.08*4
Vertical driven motor			0.1*4
Dimension (L*W*H)		mm	2200*1740*1830
Weight		kg	2100

X and Y axis is automatically, Z axis is elevating motor
Standard accessories:
1. Electrical magnet chuck
2. Coolant system
3. Grinding wheel
4. Oil pump
5. Working light
6. Wheel balance arbor
7. Wheel flange and extractor
8. Wheel dressing diamond tip and holder
9. Chuck controller
10. Motor controller
11. Tool and toolbox
12. Operation manual
Optional accessories:
1. Demagnizer
2. Vice
3. Punch dressor
4. Universal dressor
