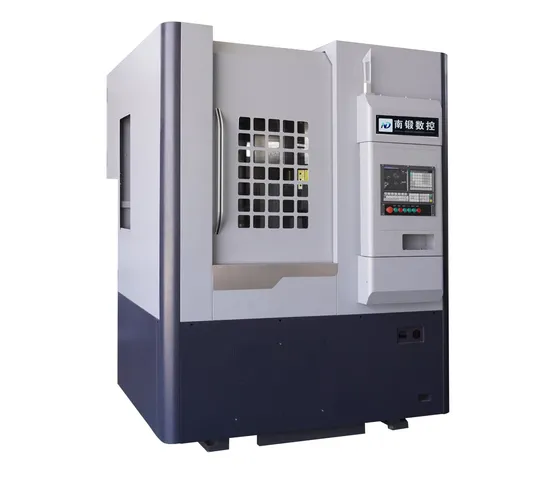

Nadun Vt45 CNC Lathe with Cutting Tools Tool Changer and Programming Software

Product Description

Nadun VT45 CNC Lathe with Cutting Tools Tool Changer and Programming Software Product Description
This CNC Vertical Lathe has the following characteristics:
1. The base, column, and sliding seat are all constructed from high-grade gray cast iron and have undergone tempering. This ensures that the machine tool maintains high strength and precision stability for prolonged use.
2. The machine employs roller-type linear slides, offering exceptional rigidity and a heavy load capacity. This design significantly improves the positioning accuracy and load-carrying capacity of both vertical and horizontal feed movements.
3. The spindle pulley of the machine tool and the spindle CNC servo motor pulley are connected by a belt and can be equipped with either an 18.5 kW or 22 kW motor. The machine features continuously variable speed with a wide range, meeting the diverse spindle speed requirements for both rough machining and finishing of parts.
4. The vertical and horizontal feeds are automatically controlled by servo motors, with protective devices in both directions. A load-balancing mechanism in the vertical direction reduces the lead screw load, greatly extending the life cycle of the lead screw.
5. Special screw bearings support both ends of the ball screw in the vertical and horizontal directions, significantly improving and ensuring the machining accuracy of the machine tool's parts.
6. The machine tool incorporates an electric lubricating oil pump to intermittently and automatically lubricate each part. This ensures the lubrication of each guide rail pair and ball screw pair, thereby prolonging the service life of each movement pair.
7. The tool post adopts a horizontal or vertical multi-station CNC tool post, minimizing tool change time and substantially improving work efficiency.
8. The upper end of the spindle can be equipped with a disc table or hydraulic chuck based on user requirements. The lower end of the main shaft can feature a rotary oil cylinder, available in single-piston or double-piston configurations. The single-piston cylinder can control the tooling to compress the workpiece or manage the hydraulic chuck. In the case of dual-piston cylinders, one cylinder controls the hydraulic chuck, and the other cylinder manages the tooling to compress the workpiece.
Detailed Photos
Product Parameters

Project	Specification	Unit	VT45	VT65	VT75
Machining Capacity	Max. Turning Diameter	mm	∮560	∮650	∮750
	Max. Cutting Diameter	mm	∮450	∮600	∮700
Spindle	Spindle Face Type		Straight	Straight	Straight
	Spindle Speed	rpm	100-2000	100-1000	100-1000
	Chuck Diameter	mm	500	500	610
Tool Magazine	Tool Capacity	pc	Horizontal 8	Horizontal 8	Horizontal 8
Travel	X-Axis Travel	mm	400	420	700
	Z-Axis Travel	mm	500	500	700
Hydraulic Unit	Oil Tank Capacity	L	40	40	40
	Hydraulic Motor Power	kW	2	2	2
Motor	Spindle Servo Motor Power	kW	15	19	22
Accuracy	Repeated Positioning	mm	±0.008	±0.005	±0.005
	Positioning Accuracy	mm	±0.008	±0.008	±0.008
Machine Dimensions	Length * Width * Height	mm	2200*2300*2600	2150*2210*2970	2700*2100*3200
	Weight (with Accessories)	kg	5000	7000	9500
Power Requirements	Power Supply	3¢-AC 380V 50HZ±5%
	Leakage protection, power failure protection	√
	Three-color indicator for machine status	√
	Long-term stable operation under the following conditions	Ambient temperature 5~38°
		Ambient humidity<85%
	Machine noise meets national standards	√
