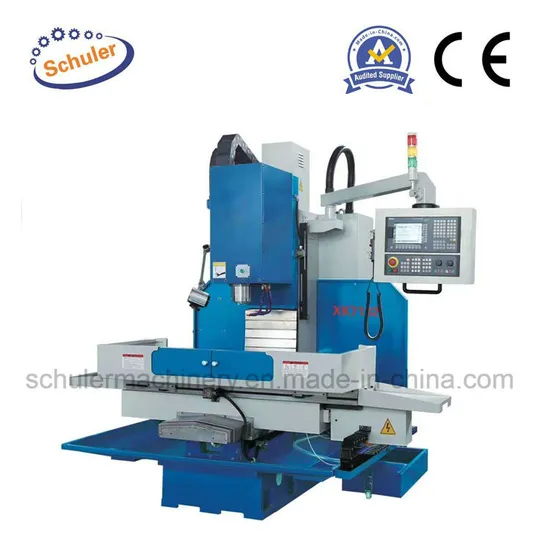

Universal Turret CNC Drilling and Milling Machine

Product Description

Universal Turret CNC Drilling and Milling Machine
Performance:
· Powerful Tool Milling Machines;
· Milling machine for tool construction;
· Automatic feeds on all 3 axes;
· Outer arbor supporting for horizontal milling;
· Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
· Steamlined arrangement of operating controls on the right side;
· Vertical head quill for drilling, with hand lever feed;
· Quill stroke 80mm;
· Central lubrication;
· Hardened guideways;
· The milling machine can be enquipped with Digital Position Indicator.
Standard Accessories:
· Complete tool
· Cutter arbor (dia.Φ16,22,27,32mm)
· Reducing sleeves (Morse1,2,3)
· Spring collect (dia.Φ2,3,4,5,6,8,10,12mm)

Optional Accessories:
· Dividing head
· Machine vice
· Universal angluar table
· Rotary table
· Boring head
· 3-axis digital position indicator
Technical Parameters and Details
Main features: 1.This bed type vertical milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
2.Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.
3.The milling head moves upwards and down wards along the column, the worktable can carry heavy load.The miller can make high precision which is suitable to process high-duty cutting.
4.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.

MODEL		X6323A	X6325	X6333	X6330A
Table size		230*1067(9*42) 230*1246(9*49)	254*1270(10*50)	330*1370(13*54)	305*1370(12*54)
			254*1370(10*54)	330*1500(13*60)	305*1500(12*60)
Long travel(mm)		650 840	850 950	840 1000	870 1000
Cross travel(mm)		305	420	368	380
Vertical travel(mm)		400	420	450	430
T-slot No.and size(mm)		3*16
Ram travel(mm)		312	470	500	500
Distance from spindle nose to table surface(mm)		0-415	0-405	0-450	0-350
Spindle hole taper		Standard:R8	Standard:R8	standard:ISO40	standard:ISO40
		Optional:ISO30/ISO40	Optional:ISO30/ISO40
Spindle travel(mm)		127
Spindle speed(r.p.m)		standard: shift grade 16: 50HZ65-4500,60HZ80-5440			standard:50HZ:65-4500,
					60HZ:80-3750
		optional:variable:65-4500	optional:variable:65-4500	optional:variable:65-3750	optional:variable:
					65-3750
Auto.quill feed		Three steps:0.04(0.0015)/0.08(0.003)/0.15(0.006'')mm/revolution
Spindle motor		2.25kw/3hp	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp
Head swivel		90°
Head tilting		45°
Dimension of package	One miller per case	1400*1476*2030	1516*1550*2080	1800*2016*2180	1566*1650*2080
	Two miller per case	1450*1570*2080	1650*1790*2170	1800*2200*2180	1720*1800*2175
	Three miller per case	1450*2180*2080	1650*2285*2235
G.W/set		1100	1550	2300	1750

Agents Wanted:
We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
Delivery:
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
