Lock Stitch Quilting Machine Sewing Mattress Making Machinery Manufacturing China

Product Description

Product Description

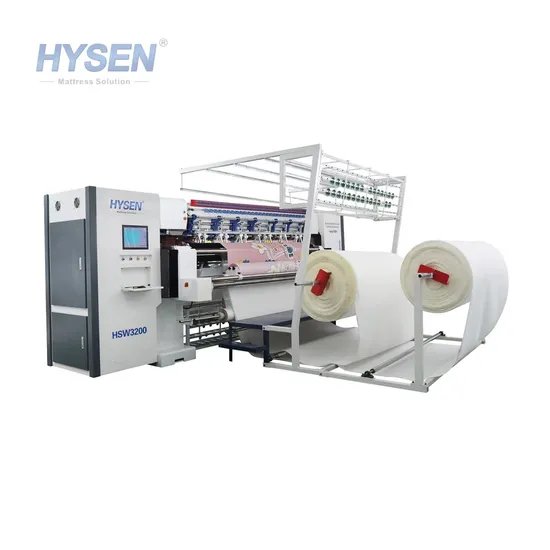

HSW3200 Computerized High Speed Shuttleless Multi-Needle Quilting Machine,The needle row adopts a needle bar frame structure, which eliminates the need for oil and avoids oil stains on the fabric. Moreover, this structure is stronger and not easy to be damaged, and the maintenance cost is low. Advanced surface thread breakage detection technology and automatic shutdown function when thread breakage occurs. The CAD drawing method is accurate in graphics, convenient and fast. High rigidity body, high machine operation, light vibration, low noise and no impact, regular refueling function. A new hooking button is added. Press this button and the machine will automatically stop at the hooking position to facilitate customers to install and debug the hook. A new high-position button is added. Press this button and the needle position will automatically stop at the highest position to facilitate needle threading.
Product Function
1. The needle bar adopts the needle bar frame structure, which does not need oiling, avoids oily fabrics, and this structure is not easy to damage, and the maintenance cost is low.
2. Advanced upper thread break detection technology, automatic shutdown when the thread is broken.
3. CAD drawing method, accurate graphics, convenient and fast.
4. High rigidity body, high machine operation, light vibration, low noise and no impact, and timed oiling function.
5. Added a hook line button, press this button and the machine will automatically stop at the hook line position to facilitate customers to install and debug the hook.
6. Added a high position button, press this button and the needle position will automatically stop at the highest position to facilitate needle installation and threading.

Product Parameters

Model	HSW3200
Dimension(l*w*h)	6000x1200x1700mm
Quilting Width	2450
Space Between Needle Rows	76.2
Space Between Needles	25.4
X-axis Movement Displacement	305
Quilting Thickness	≤30mm
Stitch Length	2‐8
Production Speed	60-230m/h
Model of Needle	24/180 23/160 22/140
Main Shaft Speed	400-1000RPM
Power	6KW
Volatge	380V/50H 220V/60H
Gross Weight	4000Kg

Product Details

If you want to know more detailed products, please click
https://hysenmachinery.en.made-in-china.com/product-list-1.html

The needle row adopts a needle bar frame structure and without refueling to avoid greasy fabric. Moreover, the structure is solid and not easily damaged, low maintenance costs.	Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.
Easy preparation of CAD drawings extremely precise.	Outs tanding featllres such as high vigidity high running speed low vibration and noise.

Application Range:Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
Our Advantages

FAQ
1.Q:Why Choose Our Company?
A:We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.
2.Q:How's the after-sale service?
A:We have a one-year warranty.Warranty period parts damage support free replacement, excluding shipping costs.
3.Q:ls the price offered changeable?
A. We offer reasonable price for every client, and the price is changeable according to purchasing amount.
4.Q: How about the quality?
A: The main subassembly and raw matetials are all supplied by large companies. Key parts are research and developed by our own staff. profesional assembly line work and strict quality test system can ensure your high quality reguirement.
