Automatic CNC Cutting Cutter Machine for Garment Fabric Textile Sweatshirt Knitwear Prepreg Cloth Leather

Product Description

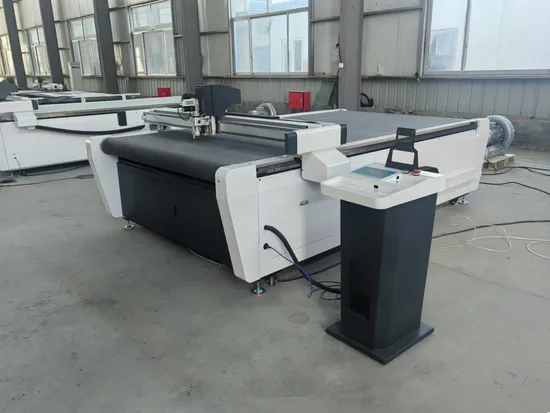

Automatic CNC Cutting Cutter Machine For Garment Fabric Textile Sweatshirt Knitwear Prepreg Cloth Leather
Introductions: One more flexible and intelligent digital cutting machine:
Deveup digital cutter is equipped with high-speed wheel cutting tool or pneumatic cutting tool, it can do both fast cutting for single layer fabric cutting, and also for multi-layer fabrics cutting. It has automatic nesting software, automatic feeding system and vacuum adsorption system. The vacuum adsorption system draws and fixes the roll-shaped fabrics, and then imports the designed image, such as AI, CorelDraw, CAD, etc. into the machine cutting operating system. The digital cutter automatically cuts on the fabrics based on the designed graphic.
Various cutting tools to meet different material cutting needs:
Deveup CNC digital cutters are mainly for fabric, leather, and composites or other flexible materials cutting. For example, Oxford cloth, Nonwoven Fabric, Chiffon, Prepreg, Neoprene, Synthetic Leather, cowhide, fur, PVC, Foam,Acoustic panel, KT board, car stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon fiber, and other materials. With a variety of tools and pens to meet the cutting needs of different materials, and provide a variety of personalized cutting services.
Problems of artificially cutting fabrics:
1. Some industries have high requirements for cutting precision, manual cutting cannot meet the cutting requirements;
2. The efficiency of manual cutting complex patterns is low, which cannot meet the needs of mass production;
3. The cost of manual cutting is high. If efficiency and precision are required, the number of workers can only be increased, and the cost of workers will be greatly increased.
Problems of laser cutting fabrics:
1. Laser cut fabrics can have yellowed and burnt edges.
2. Smoke and odor problems will occur during laser cutting fabrics.
3. The depth of focus of the laser cutting machine determines that it can't cut multi-layer fabrics well.
4. The Co2 laser tube of the laser cutting machine has a very short life span, which is a few thousand hours. Replacing the laser tube is costly.
5. Laser cutting machine has no vacuum adsorption platform, especially for large format machine, the table flatness is low, the cutting precision is low.
Advantages of Deveup CNC digital cutting machine:
1) Deveup digital cutting machine is equipped with high speed circular knife and pneumatic knife or high power vibrating knife, which can cut single-layer fabric or multi-layer fabric at high speed with high efficiency.
2) Deveup digital cutting machine uses sharp and durable tungsten steel blade to cut fabrics, the cutting edge is smooth and neat without burrs or scorching, and the cutting process is smoke-free and odorless.
3) Deveup digital cutting machine is equipped with vacuum adsorption platform, which is very good to ensure the flatness of the fabric, the cutting process of vacuum adsorption automatically start and stop, high cutting accuracy and speed.
4) Deveup digital cutting machine is equipped with automatic feeding platform, so that the machine really realize unattended work.
5) Deveup digital cutting machine is equipped with cutting and automatic nesting software, which can help customers save raw materials.
6) Deveup digital cutting machine has rich-function cutting software, which support many file support such as plt, dxf, AI, dwg, pdf and etc.
Specifications:

Parameters/Model	DO1216 DO1625 DO1330 DO1830 DO2030
Working Size	1200*1600mm 1600*2500mm 1300*3000mm 1800*3000mm 2000*3000mm (can be customized)
Cutting thickness	≤45mm (Other thickness can be customized according to the material)
Cutting speed	≤1700mm/s(The actual speed depends on the material and cutting graphics)
Applicable materials	Oxford cloth, Nonwoven Fabric, Prepreg, Neoprene, Synthetic Leather, cowhide, fur, PVC, Foam,Acoustic panel, KT board, car stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon fiber, and other materials
Cutting precision	± 0.1mm
Repeat accuracy	≤0.05mm
Min cutting circular diameter	≤1mm Diameter
Positioning way	Laser positioning also optional CCD camera positioning
Safety device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety
Material fixed way	Vacuum adsorption
Transport interface	Ethernet front-end ports/usb
Compatible software	AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization
Support File Format	AI, PLT, DXF
Operation Panel	Multilingual languages LCD touch panel
Transmission system	High precision linear guide, meshing transmission gear and rack structure, high performance servo drive motors + precision reducer
Power supply voltage	AC 220 v to 380 v ± 10%, 50 - 60hz
Pump power	7.5kw/9kw/11kw
Work environment	Temperature: - 10 ºC to 40 ºC, humidity: 20% ~ 80% RH

Machine Details: Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation. A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high processing accuracy, truly multi-purpose machine. We use CNC gantry machining center for planing and milling machine bed. The machine bed has the characteristics of heavy weight, good load-bearing capacity and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in at least 10 years. The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gasketsImported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth running at high speed and less noise.Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precisionSafety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator. The worktable is a high precision and strength 40mm thick aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material. Imported Holland 4mm felt with built-in fiber tensile layer to protect the vacuum table and blades while the machine is working. Cutting-resistant, soft, won't scratch the product, non-slip, prevent the material from shifting during the cutting process.
High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working. Use top quality Japan Panasonic servo motors and drivers(X-axis double servo motor driving + precision reducer drive). Strong power, long life, and high precision.It has an automatic feeding conveyor for rolls cutting. After cutting the material on the table. The feeding table automatically rolls forward to pull the material behind the table. and keep cutting. No need to manually pull the material forward. The cutting process also does not need to be interrupted, and with automatic deskew function.
Advantages compared with laser cutter and manual:
Tools introduction:
Cutting Samples:
More Applications:
FAQ:
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
