Buried/ADSS/Asu/Undersea/Air Blown/Drop Indoor/Outdoor 50/125 Tight One Core 2/12/24/48/288 Core 12f Armored Fiber Optic Cable

Product Description

Buried/ADSS/Asu/Undersea/Air Blown/Drop Indoor/Outdoor 50/125 Tight One Core 2/12/24/48/288 Core 12f Armored Fiber Optic Cable
Fibconet is one of the leading fiber optic cable manufacturers in China. We have spent 12 years exploring and refining fiber cables for Our customers, Our production range covers drop optical cables, indoor optical cables, and outdoor optical cables.
With Our FTTx range, Fibconet has developed solutions for different installation systems. These cables can be used inside buildings to connect individual flats. Run from the bottom to the top of the building, one or more of the cables in the bundle can branch off at any point and connect to end-user's homes.
Fibconet fiber optic cables are easy to install and could provide you with a simple, neat and commercially viable solution to upgrade an existing network at a later date as fiber is deployed and when needed.
Product Solutions
Fibconet Fiber Optic Cable Factory
Optical Cable You Can Get From Fibconet
Detailed Photos
Product Parameters

Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
condition			nm	1310/1550	1310/1550	1310/1550
attenuation			dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion		1310nm	Ps/(nm*km)	≤18	≤18	≤18
		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	>=1180,≤1330	>=1180,≤1330	>=1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	9.0±0.4	9.8±0.4
	1550nm		um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient			dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity			dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter			um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity			%	≤1.0	≤0.7	≤0.7
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤0.5	≤0.5
Curl(radius)			um	≥4	≥4	≥4

Items		Description
Installation Temperature range		-20--+60ºC
Operation and transport temperature		-40-+70ºC
Min Bending Radius(mm)	Long term	10D
	short term	20D
Allowable Tensile Strength(N)	Long term	300
	short term	600
Crush Load (N/100mm)	Long term	1100
	short term	2200

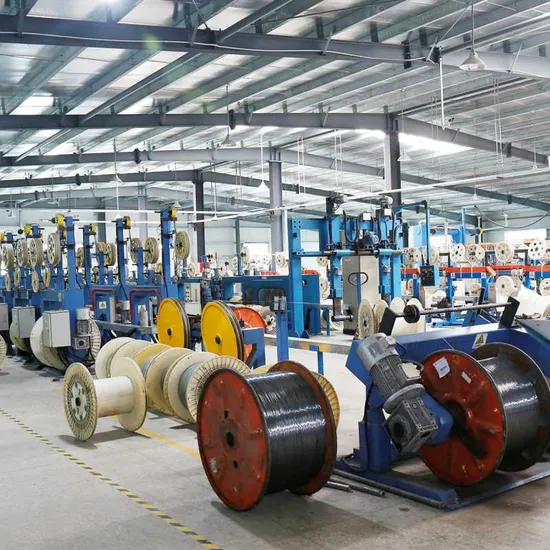

Factory Show
Company Profile
1. who are we?We are based in Zhejiang, China, start from 2020,sell to South America(30.00%),Southeast Asia(20.00%),South Asia(20.00%),Eastern Europe(10.00%),Mid East(10.00%),Central America(10.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment;3.what can you buy from us?plc splitter,patch cord,fiber optic cable,splice closure,distribution box4. why should you buy from us not from other suppliers?Fibconet focus on the fiber optical components, such as PLC splitter, patch cord, adapter, connectors etc. Especially for the PLC spliiter, it can work in the extremely cold environment. Even in the -50 centigrade degree, like in Russia.5. what services can we provide?Accepted Delivery Terms: all;Accepted Payment Currency:all;Accepted Payment Type: all;Language Spoken:nullOperating Case Temperature
