200ton Fully Automatic Vertical Fifo Rubber Injection Molding Machine/Rubber Injection Molding Machine for Rubber Parts

Product Description

injection press molding machine for the production of rubber sealing
Our Advantages
I. Advantages of the machine
1. Four column structure
2. 3RT (3 stage die sinking)
3. PLC programmable controller
4. Breakdown self check function and display
5. Pressure transducer control system
6. Tubular electric heating element fuse alarm and remind the place of the damaged tubular electric 7. heating element. It is convenient to maintain and change.
II. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services. Product Parameters
III. Technical parameter

Injection Cylinder Diameter	100
Injection press	2000
Max injection rate	70
Injection Capacity Theory	3000
Screw Diameter	45
screw speed	0-110
clamping force	5000
opening stroke	550
Hot plate space	900
main pressure plunger diameter	560mm
Hot plate size	630*800
Motor power	18
Electric heating power	22
Vacuum pump power	1
mold temperature controller power	6
System pressure	200
Weight	13t
Equipment size	3.15*2.8*4.85

Detailed Photos

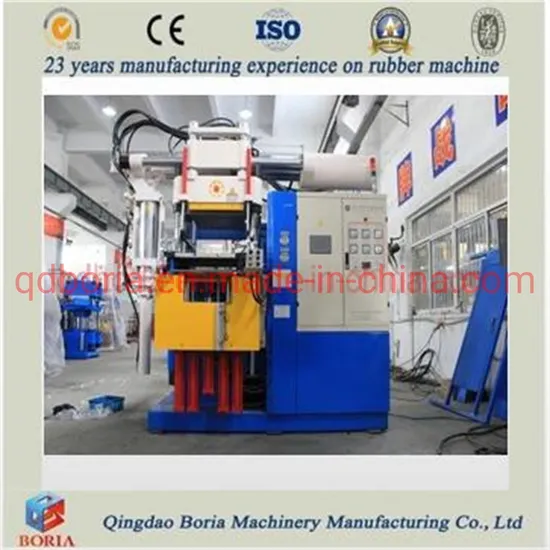

IV. Picture for reference
V. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment. FAQ
FAQ 1. Delivery time of the rubber machines? This is specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 25 to 35 days. 2. What does your factory do regarding quality control? We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment. 3. What's the machine quality guarantee? Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition. 4. Are you able to give installation and commissioning overseas? How long time will it take? Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big plant usually takes about 30 days. 5. How can I trust you to deliver the right machine as I ordered? We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us. 6. How can we go to your side? We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong International airport. We will pick up you at the airport.
