Spin Flash Dryer for Chemical Industry

Product Description

Product Description
XSG Series Flash Dryer
Descriptions:
Absorbed the foreign advanced equipment and technology, our factory and
Shenyang Chemical Research Institute under the Chemical Ministry of the State has developed this machine. This is a new kind of drying equipment used for drying the materials, such as paste state, thixotropy, thermal sensitive powder and particles. Our factory ID equipped with the test sample machine, which can be used for carrying out the drying tests of various feeds for our users and for to provide the parameters to select the applicable machine.
Principle:
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. The paste state materials enter into the drier through the screw charger. Under the powerful function of the sitting vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force. The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the de-watering will go up with the heat-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.
Features:
This machine combines the whirl technology with the fluidity ejection and smashing step technologies. The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that a small equipment can perform the large production.
The drying capacity for this machine is big but its energy consumption is low. Its hear efficiency can go up to more than 70%. The material star time is very short. The quality of the final products is very good. The machine can be used for drying the hest sensitive materials. For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution. Product Parameters

spec	Barrel diameter(mm)	Main machine dimensions(mm)	Main machine power ( kw )	air velocity ( m 3 /h )	Water evaporation capacity ( Kg/h )
XSG-2	200	250×2800	5-9	300-800	10-20
XSG-3	300	400×3300	8-15	600-1500	20-50
XSG-4	400	500×3500	10-17.5	1250-2500	25-70
XSG-5	500	600×4000	12-24	1500-4000	30-100
XSG-6	600	700×4200	20-29	2500-5000	40-200
XSG-8	800	900×4600	24-35	3000-8000	60-600
XSG-10	1000	1100×5000	40-62	5000-12500	100-1000
XSG-12	1200	1300×5200	50-89	10000-20000	150-1300
XSG-14	1400	1500×5400	60-105	14000-27000	200-1600
XSG-16	1600	1700×6000	70-135	18700-36000	250-2000

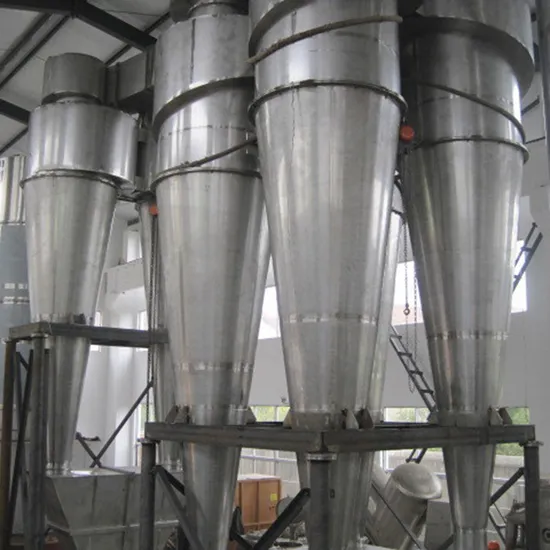

Detailed Photos
