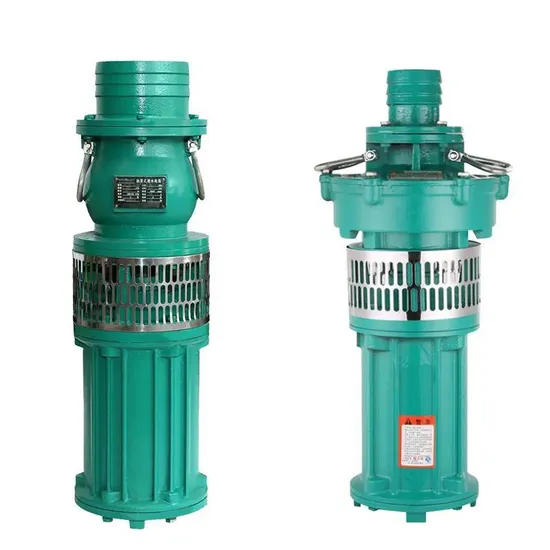

2.2kw/5kw Oil-Immersed Submersible Water Pump for Agricultural/Garden Underground Irrigation Sewage Water Treatment

Product Description

Product Description Oil filled submersible pump consists of pump, mechanical seal and motor. Pump is at the bottom part of pump, which is adopted centrifugal impeller. Motor which triphase is at the upper part of pump and seal is used where pump and motor combine, which is a kind of double end mechanical seal. "O" rings are applied to all static joints. Axial flow impeller design can meet customer demand for big flow.
Built-in food grade mechanical oil
Feature of water oil filled submersible pump
* SS and carbon thrust bearings used in vertical openwell sub
* Bronze impeller in specific models
* Specially designed journal bushes for better cooling effect
* Designed for extensive voltage fluctuations
* High operating efficiency
* Detachable pump and motor in vertical higher stage pump
Condition of use
1. Medium is not corrosive. Sand contents should be max. 0.1% by volume and granular size should be max 0.2mm
2. Medium temperature should not be over 40 and PH should be 6.5-8.5
3. The pumps should be operated within rated head.
4. The pumps should be fully submerged into water with depth of less than 3m and max. The pump should be min 0.5m over the water bottom and not be inserted into sludge.
5. Power frequency should be 50hz, three-phase voltage 380V, and voltage fluctuation should be 0.9-1.1 times than the rated. Application of water oil filled submersible pump1. Agricultural/garden irrigation
2. Underground water supply
3. Tower water supply
4. Fountain
Detailed Photos
Product Parameters In order to choose a suitable pump, we need to know the following information :1. What's the liquid ? Is it sewage, mud ,slurry or sand ? What's the percentage of the solid ?2. What's the flow rate per hour ?3. What's the length of the letter H, L,D in the above picture ?

Model	Flow	Lift	Power	Voltage
	(m3/h)	(m)	(KW)	(V)
QY15-26-2.2	15	26	2.2	380
QY25-17-2.2	25	17	2.2	380
QY40-12-2.2	40	12	2.2	380
QY65-7-2.2	65	7	2.2	380
QY100-4.5-2.2	100	4.5	2.2	380
QY15-36-3	15	36	3	380
QY20-36/2-3	20	36	3	380
QY25-26-3	25	26	3	380
QY40-16-3	40	16	3	380
QY65-10-3	65	10	3	380
QY100-6-3	100	6	3	380
QY160-5-3	160	5	3	380
QY12.5-50-4	12.5	50	4	380
QY25-38/2-4	25	38	4	380
QY40-21-4	40	21	4	380
QY65-15-4	65	15	4	380
QY100-9-4	100	9	4	380
QY200-4.5-4	200	4.5	4	380
QY260-3.5-4	260	3.5	4	380
QY25-40-5.5	25	40	5.5	380
QY40-25-5.5	40	25	5.5	380
QY65-18-5.5	65	18	5.5	380
QY160-9-5.5	160	9	5.5	380
QY260-6-5.5	260	6	5.5	380
QY20-60-7.5	20	60	7.5	380
QY25-50-7.5	25	50	7.5	380
QY40-38-7.5	40	38	7.5	380
QY65-26-7.5	65	26	7.5	380
QY200-12-7.5	200	12	7.5	380
QY260-9-7.5	260	9	7.5	380

Product recommendation
After Sales Service

Pre-sale:

After-sale:

1. Can customize quality level to match customer's target price.2. Can provide samples first, samples are packaged by wooden box.3. Can provide any accessories parts on aerator for any quantity.4. Many different models and different quality level for customer to choose.5. Warranty: Different warranty for different quality level.6. Whole Life free technical guidance, follow up after use situation

1. Start production as soon as receiving down payment.2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.4. Documents and certificate available in time.5. Manual documents available. Engineer can be sent to client site for installation instruction.
