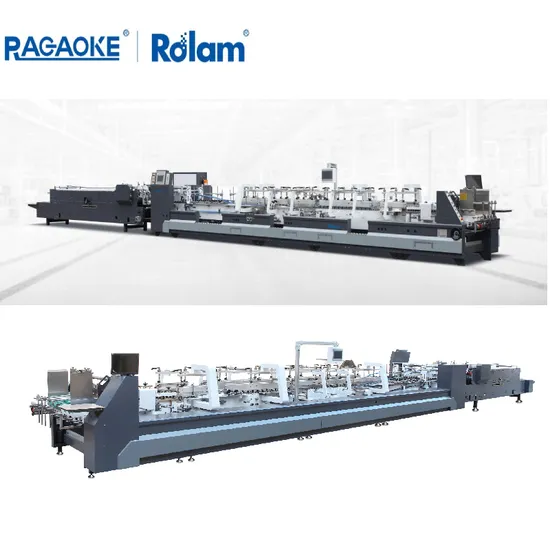

Folder Gluer for Box Making Automatic Laminating Folding Gluing Machine (GS-1100)

Product Description

Why Choose RolamProduct DescriptionAutomatic High Speed 4/6 Corner Crash Lock Bottom Folder Gluer(GK-GS)
GS series folding gluing machine is multifunction high speed machine,imported electronic components, adopt synchronous belt transmission and electronic continuously variable speeder ,feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together. (in case of any special function required, we can design according to the customer's intention.)
·400m/min max speed
·210-800gsm cardboard B/N/E Flute Corrugated Sheet
·Straight-line, crash lock bottom, 4& 6 corner, etc...Product Parameters

GS TECHNICAL PARAMETERS
MODEL	650	800	1100
Paper Material	Cardboard 210-800 GSM,A/B/E Flute
Max Speed	400 M/Min
Max Thickness of Folded Box	12 MM
Way of Folding	Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180°
Power Supply	3P 380V 50HZ
Blank Width	650 MM	800 MM	1100 MM
Length X Width X Height	13 X 1.3 X 1.3M	15 X 1.5 X 1.3M	15 X 1.8 X 1.3M
Net Weight	5.5 T	6.5 T	7.5 T
Total Power	23 KW	30 KW	30 KW

Samples

Straight Line Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
B+C+D+E	110-650	110-800	110/200-1100
E (Min)	30	30	30
F	50-800	50-800	50-800
G (Max)	800	800	800

Crash Lock Bottom Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
B+C+D+E	130-550	130-700	130/280-1000
E (Min)	30	30	30
F	50-800	50-800	50-800
G (Max)	800	800	800
H (Min)	25	25	25
L	30-100	30-100	30-100

4 Corners Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
A+B+C	160-450	160-600	260-900
B (Min)	90	90	90
F	70-600	70-600	70-600
G (Max)	800	800	800
H (Min)	25	25	25
L	30-100	30-100	30-100

6 Corners Box
Model	650Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
A+B+C+D+E	260-450	260-600	360/410-900
B (Min)	80	80	80
C (Min)	30	30	30
F	70-600	70-600	70-600
G (Max)	800	800	800
H (Min)	25	25	25
L	30-100	30-100	30-100

Company Profile New Luolanl Machinery,
The Leader of Gluing and Folding Field.
Zhejiang New Luolan Machinery Co., Ltd, is established in 2006.
As a professional manufacturer, we not only do manufacturing, but also researching, marketing and offering after sales service. We supply quality equipment, effective and convenient solutions for cardboard box and corrugated box folding industry, printing and packaging industry. Gluing folding machine and window patching machine which produced by Zhejiang New Luolan Machinery Co., Ltd have approved by the National Quality Supervision and inspection
New Luolan Machinery has strong technology for Products research, with all-sided testing program. As a National High-tech enterprise, Luolan has got a number of patent and The Gluing Folding equipment have passed the test by National Quality Supervision Center.
New Luolan closely grasps the trend of industrial development planning, selects industrial intelligent production 4.0.New Luolan will provide the best quality and most competitive Gluing Folding equipment to all of our clients.
Packaging & Shipping
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, Also some are according to the customer's requirement.
FAQQ: What is the machine warranty?
A: One year.
Q: What is the production time while placing order?
A: About 35 days
Q: What is the delivery time?
A: Within 30 days after get the payment.
Q: How about after-sales service process?
A: When your machine has problem, contact your sales and we will solve your problem soon as possible.
Q: Do you have stock product to sell?
A: Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
