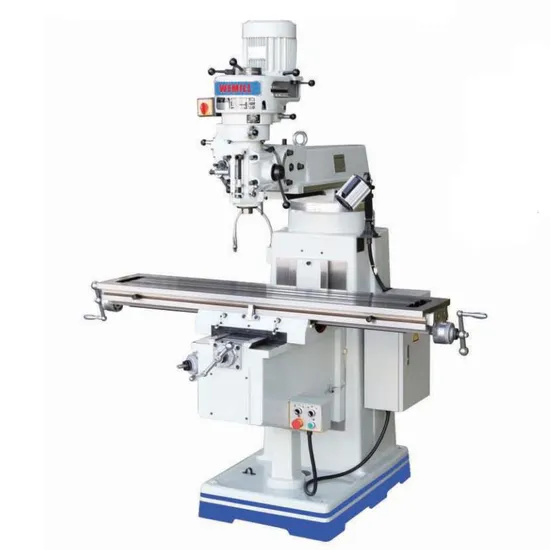

Simple Knee Type CNC Milling Machine with Yz Axis Dovetail Way
| US$50,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Simple X6332
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionThe simple X6332 series standard equip with wide work table by which can realize biggerworking area with low machine price.
YZ axis dovetail way
Product Parameters
| ltem | UNIT | X6332 | X6332L | |
| Table size | mm | 320×1370(12.5×54") | 320×1500(12.5×58") | |
| T slot size | mm | 3×16 | ||
| X axis travel | mm | 920 / 1000 | ||
| Y axis travel | mm | 400 | ||
| Zaxis travel | mm | 400 | ||
| Ram cross travel | mm | 470 | ||
| Distance from spindle nose to table | mm | 0~400 | ||
| Spindle hole taper | Standar R8 (optional NT30/40) | |||
| Quill travel | mm | 127 | ||
| Spindle speed | r/min | Standard 16 shift: 65-4500(50HZ)80-5440(60HZ) Optional Variable speed: 60-4200 | ||
| Auto quill feed | mm/rev | 0.04(0.0015")/0.08(0.003")/0.15(0.006") | ||
| Spindle motor power | HP | 3(2.2KW) | ||
| Milling head swivel | ±90° | |||
| Milling head tilting | ±45° | |||
| Dimension of package | 1 miller/pallet | mm | 1520×1550×2080 | |
| 2 miller/pallet | mm | 1650×1800×2170 | ||
| G.W/set | kg | 1400 | ||
