New Advanced Technology Autoclave for Carbon Firber/Composite Products (ASME/CE/ISO9001)

Product Description

Model No.:CX2000A
Name: Autoclave ,Autoclave For Carbon Fiber,Carbon Fiber Forming Autoclave,Curing Carbon Fiber Autoclave,Composite Material Autoclave, Composite Autoclave,Autoclave for composite materials fabrication.
Usage:
Autoclave is widely used in aerospace, composite materials, electronics, weapons, transportation, sports equipment and new energy and other high-tech fields.
Our company developed the autoclave with the advantages of high temperature and pressure control precision, safe and reliable structure, good system stability, low energy consumption.
Operation and simple maintenance and realize the modularization, can satisfy the different areas, different process and different specifications of the requirements.
The superiority of the control system:
1. The operation is simple: one-click process automation control (can realize unattended) .
2. The control system reliability: adopt high quality high performance control element (make sure that the control system operation reliability).
3. The advanced solidification control concept: single equipment and multiple devices control (to achieve redundancy and DCS collecting and distributing control system).
4. Big data acquisition: data acquisition storage print comprehensive report on.
5. Automatic quality analysis: with fluid mechanics software Can help users to simulation analysis.
6. Multiple languages interface, allowing switchable interface language.
7. System extensibility: easy to the future development of the integrated utilization of resources.
Production system of our company :
Auto- welding :
Auto- bending :
X-ray detection :
Parameters below:

Item	800	1200	1500	1700	2000	2600
Inner diameter(mm)	800	1200	1500	1700	2000	2600
Canister length(mm)	22000	3000	3000	4000	5000	10000
Number of lid sawtooth	12	12	14	14	16	24
thickness of lid (mm)	10	10	10	10	16	14
Thickness of the tank body(mm)	10	10	10	10	12	14
Working pressure(Mpa)	0.8	0.8	0.8	0.8	0.8	0.55
Dimensions(mm) (length*width*height)	22766*1445 *1170	4010*1575 *1670	3960*2150 *2050	4925*2162 *2070	6200*2590 *2424	11722*3360 *4136
Weight(Kg)	5580	2017	2950	3835	6500	16775

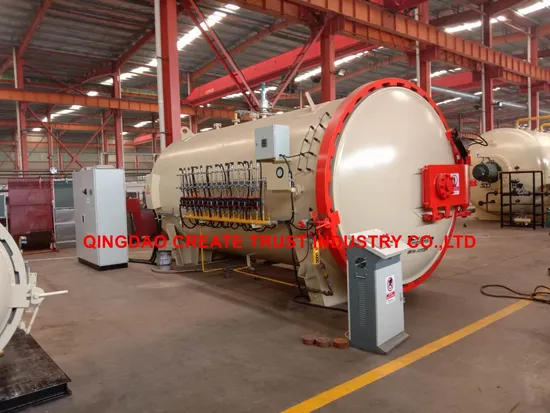

Autoclave made by us:
Products made by our autoclave:
Service of us:
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
