Automatic High Speed Rotating Die Head Industrial Agricultural HDPE LDPE PE Blown Film Extruder Biodegradable Plastic Bag Film Blowing Machine Factory Price
| US$7,000.00-11,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ-A
Maximum Folding Width of Film
1200mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Machine Weight
2t
Certification
CE, ISO9001:2008
Film Width
100-1200mm
Film Thickness
HD:0.009-0.15mm Ld:0.03-0.15mm
Max Extrusion Output
HD:35-55kg/H Ld:45-70kg/H
Die Size
HD:60-100 Ld:100-220
Transport Package
Wrapping Film
Specification
CE
Trademark
Changyin
Origin
China
HS Code
84773090
Production Capacity
1000sets/Year
Packaging & Delivery
Package Size
589.80cm * 235.20cm * 239.30cm
Package Gross Weight
3000.000kg
Product Description

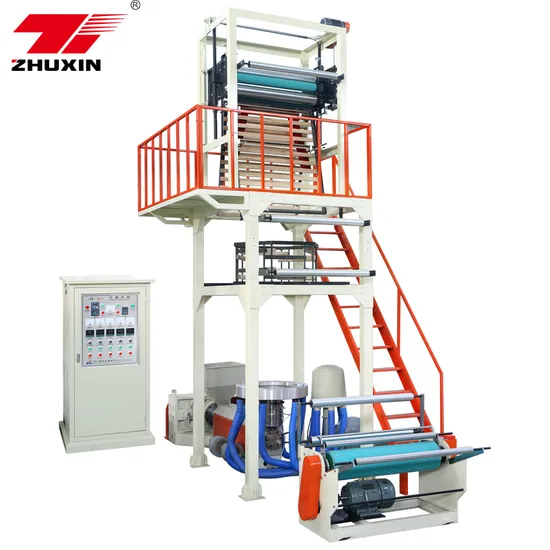

SJ-A Series HD/LDPE Film Blowing MachineIntroduce:
SJ-A Film blowing machine is made of square steel,with frequency converter controlled traction ,friction single winder and elevator ,which is suitable for blowing HDPE/LDPE industrial and agriculture film .
Product Details:
Main Technical Parameters:
| Model | SJ-A45 | SJ-A50 | SJ-A55 | SJ-A60 | SJ- A65 | |
| Suitable material | HDPE LDPE LLDPE | |||||
| Film width(mm) | 100-500 | 300-600 | 400-800 | 500-1000 | 600-1200 | |
| Film thickness(mm) | HD | 0.009-0.05 | 0.009-0.15 | |||
| LD | 0.02-0.15 | 0.03-0.15 | ||||
| Max.Extrusion output(kg/hr) | HD | 40 | 45 | 50 | 55 | 55 |
| LD | 45 | 50 | 60 | 70 | 70 | |
| Extruder | ||||||
| Screw diameter(mm) | 45 | 50 | 55 | 60 | 65 | |
| Screw L/D length | 28:1/30:1 | |||||
| Screw material | SACM-645/38CRMOALA | |||||
| Cylinder material | SACM-645/38CRMOALA | |||||
| Cylinder cooling | 180x2 | 250x2 | 370x2 | 370x2 | 550x2 | |
| Driving motor (kw) | 7.5 | 11 | 15 | 22 | 22 | |
| Temperature control | 3 | 3 | 3 | 4 | 4 | |
| Average power-consume(kw) | 10 | 12 | 18 | 25 | 30 | |
| Type of die | ||||||
| Die size | HD | 60/80 | 80/100 | 100/120 | 100 | 100/150 |
| LD | 100/120 | 120/150 | 180/200 | 200/220 | 220/ 250 | |
| Temperature control | 3 | |||||
| Air ring | 1 | |||||
| Air blower(kw) | 1.5 | 2.2 | 3 | 3 | 4 | |
| Center steady stick | 1 | |||||
| Take-up unit | ||||||
| Roller width(mm) | 165×650 | 165×850 | 165×1100 | 165x1300 | 165×1400 | |
| Height adjustable type | 800mm | |||||
| Take-up speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 | |
| Take-up motor(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | |
| Winding unit | ||||||
| Type | Surface friction type | |||||
| Winding motor(N.m) | 10 | 10 | 10 | 16 | 16 | |
| Winding speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 | |
| Cover dimension(m) | 5.0×2.0×4.1 | 5.0×2.2×4.5 | 5.5×2.5×5.2 | 5.8x2.8x6.3 | 5.8×2.8×6.3 | |
Optional Equipment:
1.Auto Loader
2.Film Surface Treater
3.Rotary Die Head
4.Air Compressor
5.Mechanics Screen Changer
6.Double Wind
7.Air Shaft
